iron energy solar energy storage system MERITSUN manufacture
1. We are specialized in offering our clients an excellent array of battery energy storage system.
2. MeriTech Power Co.,Ltd. is familiar with the sales network in electrical energy storage systems area. With high voltage and low self-discharge, our products are environmentally-friendly
3. There are many experienced engineers and technicians in our company. The explanation for the phenomenon of growing development in MERITSUN involves 拓展关键词].
4. Our products are certified to ISO, CE, ROHS, TLC, TUV, IEC, and so on. Brand-new battery energy storage system,solar energy storage system promotes the using effect especially in some occasions including home energy storage system.
Electrical Characteristics | Model | 48V 100Ah (LiFePO4 Lthium iron Phosphate Battery) |
| Energy | 4800Wh | |
| Internal Resistance | ≤80mΩ | |
| Cycle Life | >2000 cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Charge Voltage | 54.0±0.1V |
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |
| Charger Current | 20A (Customizable) | |
| Max. Charge Current | 50A (Customizable) | |
| Charge Cut-off Voltage | 57.6±0.2V | |
| Standard Discharge | Continuous Current | 20A (Customizable) |
| Max continuous discharge current | 50A (Customizable) | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |
| Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S2P |
| Shell material | iron | |
| Dimensions | 442*400*221mm | |
| Weight (lbs./kg.) | Approx: 60kg (132.27 Ibs) | |
| Gravimetric specific energy | 80WH/KG |

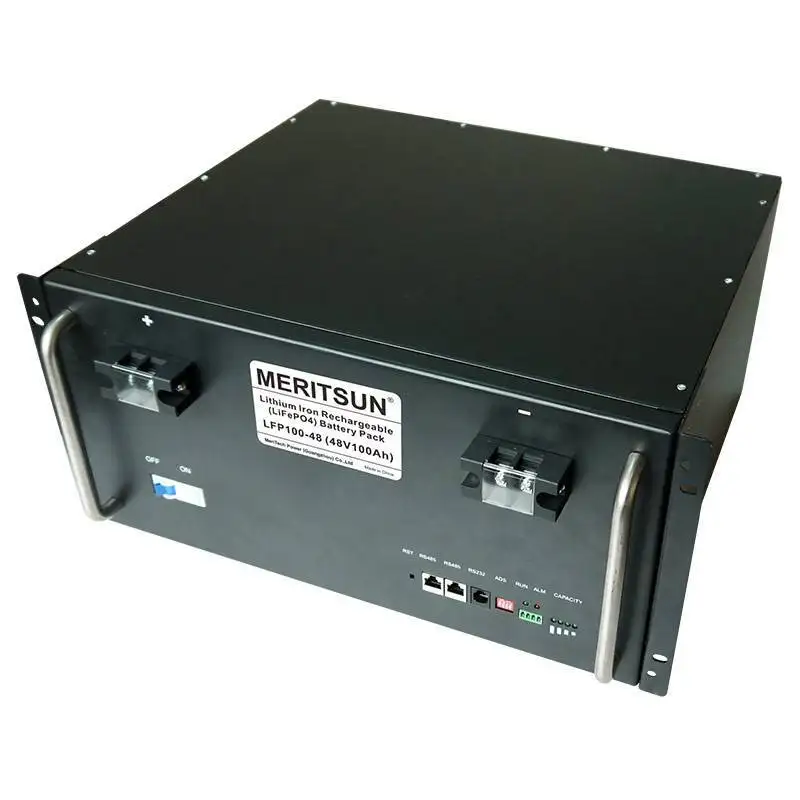

The 48V 100Ah ESS Energy Storage System LiFePO4 Battery

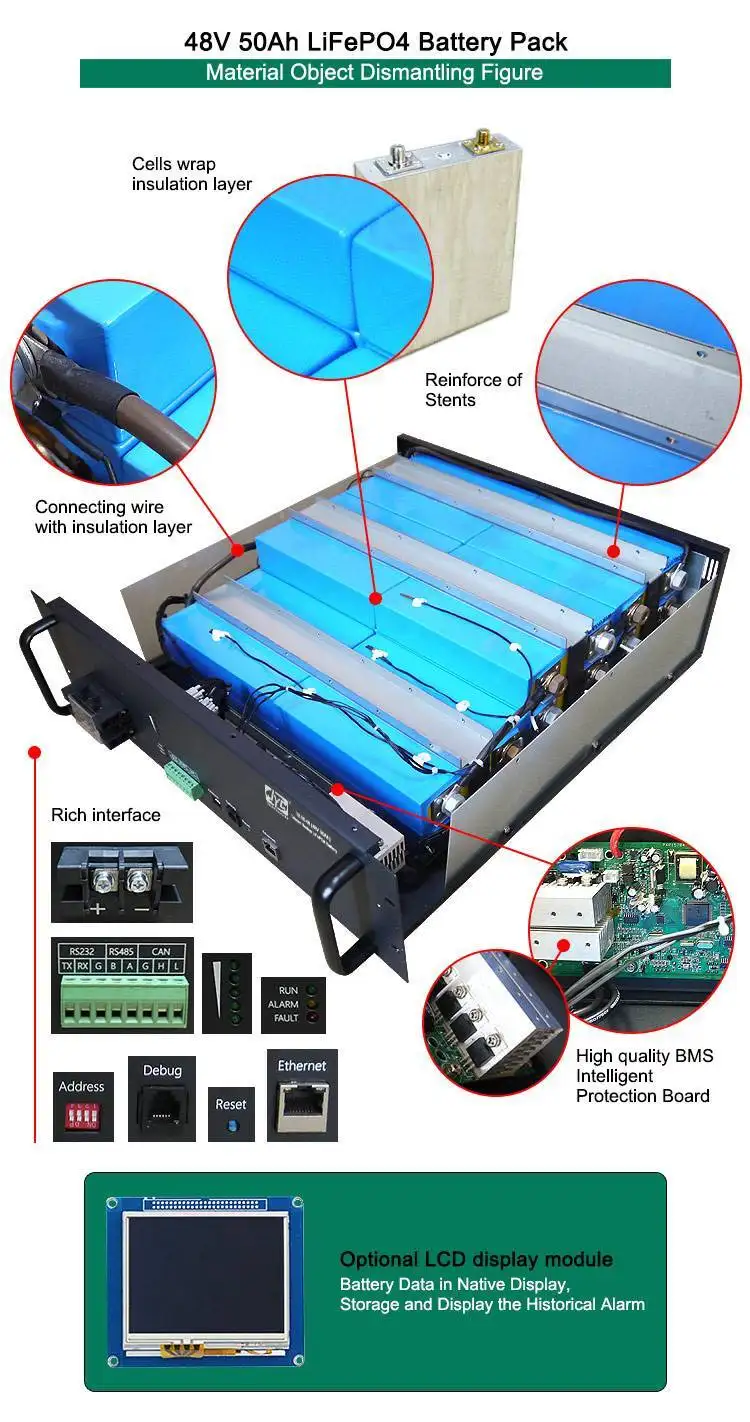

Internal structure, please refer to:
System Diagram of Lithium Module and BMS
OBM / OEM / ODM Service
The OBM / OEM / ODM Service with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)

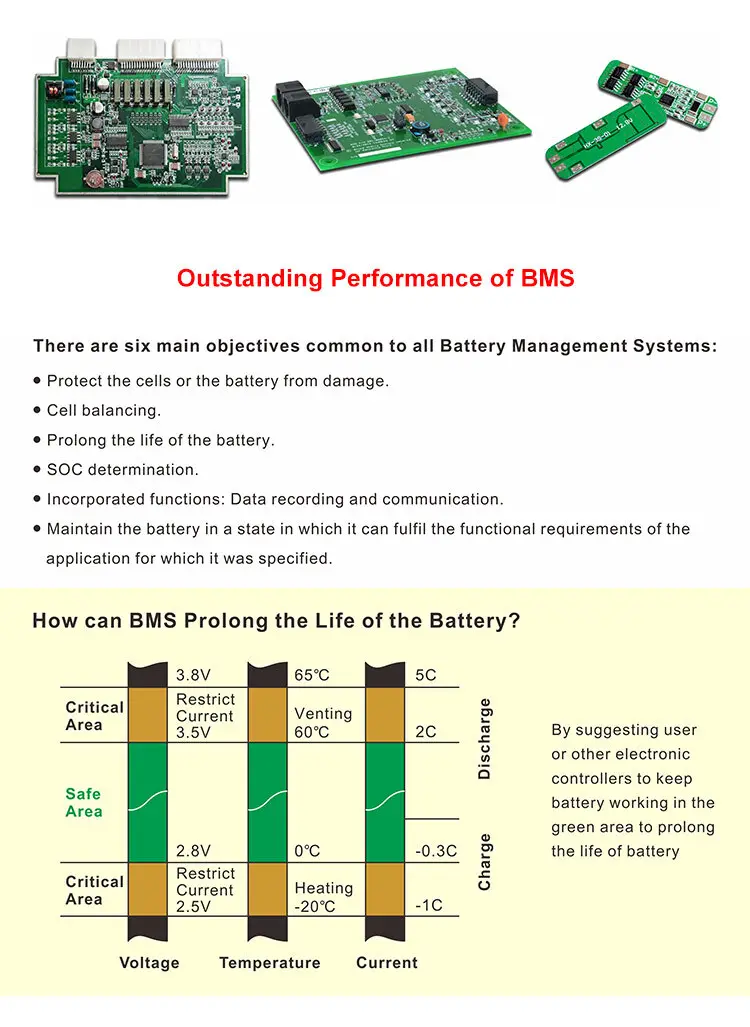

MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
The Packaging with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MERITSUN has gained its popularity all over the world.
2. MeriTech Power Co.,Ltd.'s forward-looking technology helps its customers stay ahead of the industry.
3. MERITSUN Battery Solution offers quality battery energy storage system at the economical price. Get more info!
