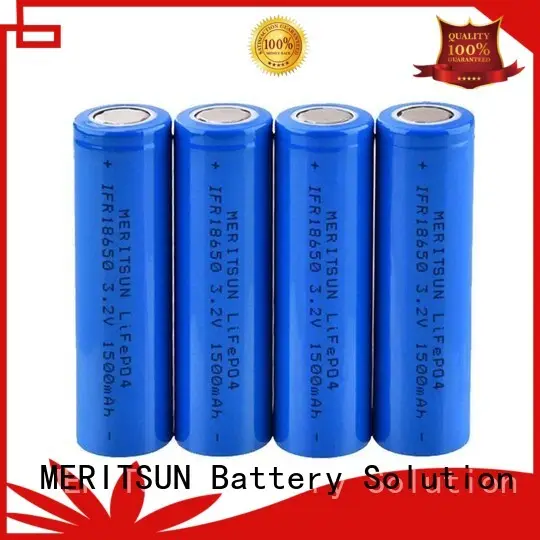

IFR 18650 3.2V 1500mAh Lithium Li-ion Li ion LiFePO4 Rechargeable Lithium ion Battery Cell
Model:
IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. 18650 lithium ion cells is developing toward functional, practical, and decorative types. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
2. The product meets the varied expectations of our valuable clients and has a good future with a very variety of applications. It is produced in strict accordance with the UL standard
3. The product has high power and high specific energy. All of its main raw materials including the electrolyte and positive and negative anodes feature high quality and purity. The product with a long service life can be used for more than 8 years
4. The product has a relatively wide range of working temperature. It can work normally under high and cold temperature without influence on its electricity performance. The product is characterized by thermal performance
5. The product is environmental-friendly. Any heavy metals such as lead, mercury, cadmium have been eliminated, and the ingredients of them do not exceed 0.0001%. Made of reliable chemical substances, the product is of superior safety
![]()
![]()
1. 18650 lithium ion cells is developing toward functional, practical, and decorative types. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
2. The product meets the varied expectations of our valuable clients and has a good future with a very variety of applications. It is produced in strict accordance with the UL standard
3. The product has high power and high specific energy. All of its main raw materials including the electrolyte and positive and negative anodes feature high quality and purity. The product with a long service life can be used for more than 8 years
4. The product has a relatively wide range of working temperature. It can work normally under high and cold temperature without influence on its electricity performance. The product is characterized by thermal performance
5. The product is environmental-friendly. Any heavy metals such as lead, mercury, cadmium have been eliminated, and the ingredients of them do not exceed 0.0001%. Made of reliable chemical substances, the product is of superior safety
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
