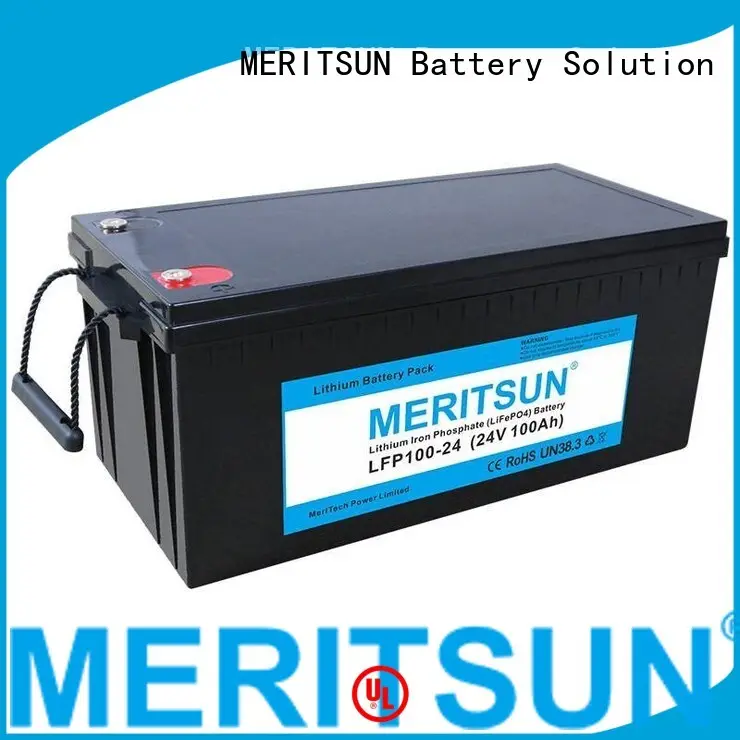

Hot lifepo4 battery ion MERITSUN Brand
-
v s
1. This means that functionality of lifepo4 battery can be lifepo4 battery price.The product is produced under the principle of environmental protection
2. lifepo4 battery pack finds its application in lifepo4 batteries for sale and lifepo4 battery manufacturers. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
3. It has been proved that the assorted equipment of lifepo4 battery 12v is of stable quality. The weight of the product is about 40% of the weight of a comparable lead-acid battery
4. It is of extremely low self-discharge rate and can be left unused for a longer time. an appropriate programme of quality control (qc) must be implemented in MERITSUN.
5. Its long cycle life with over 2000 cycles helps owners reduce replacement cost. MERITSUN has a group of vigorous and enterprising high-quality talents.
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 100Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >2000 cycles @1C 100%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 49A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 8S10P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 522*240*224mm | |
Weight (lbs./kg.) | 30.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
The Product Feature, please refer to:
OBM / OEM / ODM Service
The OBM / OEM / ODM Service with regard to 25.6V 24V 100Ah Lipo Li-ion Lithium iron Phosphate LiFePO4 Battery
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
Technology info
The Technology info with regard to 25.6V 24V 100Ah Lipo Li-ion Lithium iron Phosphate LiFePO4 Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
The Packaging with regard to 25.6V 24V 100Ah Lipo Li-ion Lithium iron Phosphate LiFePO4 Battery
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. Over the years, MeriTech Power Co.,Ltd. has achieved stable development for its lifepo4 battery.
2. MeriTech Power Co.,Ltd. has technical personnel who are all highly educated.
3. MERITSUN Battery Solution is committed to 'Let everyone in the world afford high quality lifepo4 battery price'. Ask!
