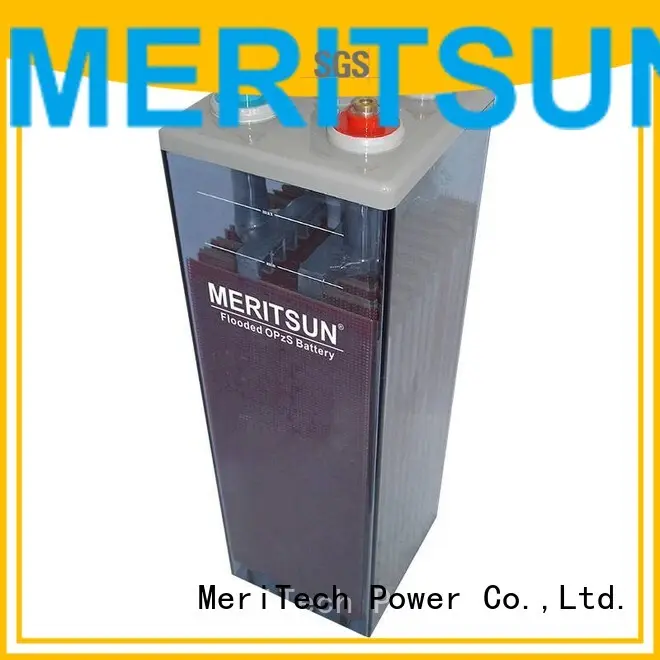

Hot deep vrla gel battery front MERITSUN Brand
1. The newly launched products by MeriTech Power Co.,Ltd. were all completed by the internationally renowned design company. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
2. All relative certificates to guarantee quality will be provided by MeriTech Power Co.,Ltd..
3. opzv battery is of great market competitiveness. It can be used within a wider temperature range from -20℃ to 65℃
4. The data show thatopzs battery has high performance such as vrla gel battery. The product is characterized by thermal performance
5. with the characteristics of opzs batterie, agm vrla battery can complete meet the production need. It can be widely applied in diverse areas ranging from small appliances and IT devices
❈ Product Features
★ General Features：
◪1. Lower self discharge.
◪2. Higher thermal capacity, No thermal runaway will occur
◪3. Superior deep cycle performance.
◪4. Wide operation temperature range.
◪5. Long service life, designed life 15-20 years.
❈ Typical Applications
| Telecommunications | Buoy lighting | Radio and cellular telephone relay stations |
| Emergency lighting systems | Railway signalling | Large UPS and computer back-up |
| alternative power (solar, wind) | Standby power | Maritime standby power on ships and ashore |
| Power stations, Conventional power stations | ||
❈ Product Specification
Type | Model | Rated Voltage | Rated Capacity | Approx Dimension (mm/in) | Approx | ||||||||
Length | Width | Height | Total Height | ||||||||||
mm | in | mm | in | mm | in | mm | in | Kg | lbs | ||||
2V | OPzS100-2 | 2 | 100 | 103 | 4.06 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 8.1 | 17.9 |
OPzS150-2 | 2 | 150 | 103 | 4.06 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 10.8 | 23.8 | |
OPzS200-2 | 2 | 200 | 103 | 4.06 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 12.9 | 28.4 | |
OPzS250-2 | 2 | 250 | 124 | 4.88 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 15.4 | 33.9 | |
OPzS300-2 | 2 | 300 | 145 | 5.71 | 206 | 8.11 | 355 | 13.98 | 410 | 16.14 | 18.5 | 40.8 | |
OPzS350-2 | 2 | 350 | 124 | 4.88 | 206 | 8.11 | 471 | 18.54 | 526 | 20.71 | 21.0 | 46.3 | |
OPzS420-2 | 2 | 420 | 145 | 5.71 | 206 | 8.11 | 471 | 18.54 | 526 | 20.71 | 24.5 | 54.0 | |
OPzS490-2 | 2 | 490 | 166 | 6.54 | 206 | 8.11 | 471 | 18.54 | 526 | 20.71 | 28.0 | 61.7 | |
OPzS600-2 | 2 | 600 | 145 | 5.71 | 206 | 8.11 | 646 | 25.43 | 701 | 27.6 | 33.4 | 73.6 | |
OPzS800-2 | 2 | 800 | 191 | 7.52 | 210 | 8.27 | 646 | 25.43 | 701 | 27.6 | 47.0 | 103.6 | |
OPzS1000-2 | 2 | 1000 | 233 | 9.17 | 210 | 8.27 | 646 | 25.43 | 701 | 27.6 | 57.0 | 125.7 | |
OPzS1200-2 | 2 | 1200 | 275 | 10.83 | 210 | 8.27 | 646 | 25.43 | 701 | 27.6 | 67.5 | 148.8 | |
OPzS1500-2 | 2 | 1500 | 275 | 10.83 | 210 | 8.27 | 796 | 31.34 | 851 | 33.5 | 83.5 | 184.1 | |
OPzS2000-2 | 2 | 2000 | 399 | 15.71 | 214 | 8.42 | 772 | 30.39 | 827 | 32.56 | 110.0 | 242.6 | |
OPzS2500-2 | 2 | 2500 | 487 | 19.17 | 212 | 8.35 | 772 | 30.39 | 827 | 32.56 | 139.0 | 306.5 | |
OPzS3000-2 | 2 | 3000 | 576 | 22.68 | 212 | 8.35 | 772 | 30.39 | 827 | 32.56 | 164.5 | 362.7 | |
6V | OPzS200-6 | 6 | 200 | 272 | 10.7 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 35.0 | 77.2 |
OPzS250-6 | 6 | 250 | 381 | 15.0 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 45.0 | 99.2 | |
OPzS300-6 | 6 | 300 | 381 | 15.0 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 49.9 | 110.1 | |
12V | OPzS50-12 | 12 | 50 | 272 | 10.7 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 28.2 | 62.2 |
OPzS100-12 | 12 | 100 | 272 | 10.7 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 38.5 | 84.9 | |
OPzS150-12 | 12 | 150 | 381 | 15.0 | 205 | 8.07 | 337 | 13.27 | 384 | 15.12 | 53.0 | 117.0 | |
★ Specification subject to change without prior notice.
