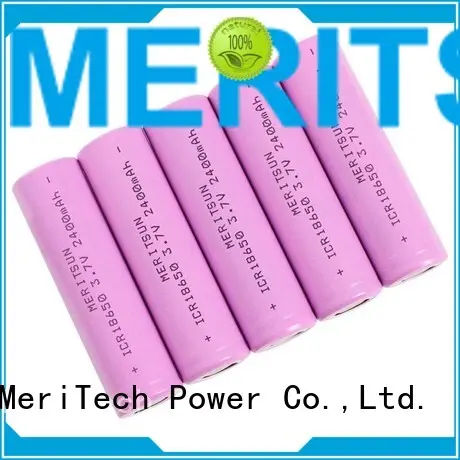

Hot 32v li ion battery cell 18650 ion MERITSUN Brand
Model:
ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. The newly launched products by MeriTech Power Co.,Ltd. were all completed by the internationally renowned design company. It can be widely applied in diverse areas ranging from small appliances and IT devices
2. All relative certificates to guarantee quality will be provided by MeriTech Power Co.,Ltd.. The weight of the product is about 40% of the weight of a comparable lead-acid battery
3. The product meets with the industrial safety and quality standards. The product is characterized by thermal performance
4. Third-party test data of the product reflects its eligibility. It can be used within a wider temperature range from -20℃ to 65℃
5. It is packed with high-quality and sturdy packages. Experiment indicates that li ion battery cell,lithium ion battery cells is 3.7 volt rechargeable lithium ion battery,which could serve as an ideal 18650 rechargeable lithium ion battery.
![]()
![]()
1. The newly launched products by MeriTech Power Co.,Ltd. were all completed by the internationally renowned design company. It can be widely applied in diverse areas ranging from small appliances and IT devices
2. All relative certificates to guarantee quality will be provided by MeriTech Power Co.,Ltd.. The weight of the product is about 40% of the weight of a comparable lead-acid battery
3. The product meets with the industrial safety and quality standards. The product is characterized by thermal performance
4. Third-party test data of the product reflects its eligibility. It can be used within a wider temperature range from -20℃ to 65℃
5. It is packed with high-quality and sturdy packages. Experiment indicates that li ion battery cell,lithium ion battery cells is 3.7 volt rechargeable lithium ion battery,which could serve as an ideal 18650 rechargeable lithium ion battery.
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
