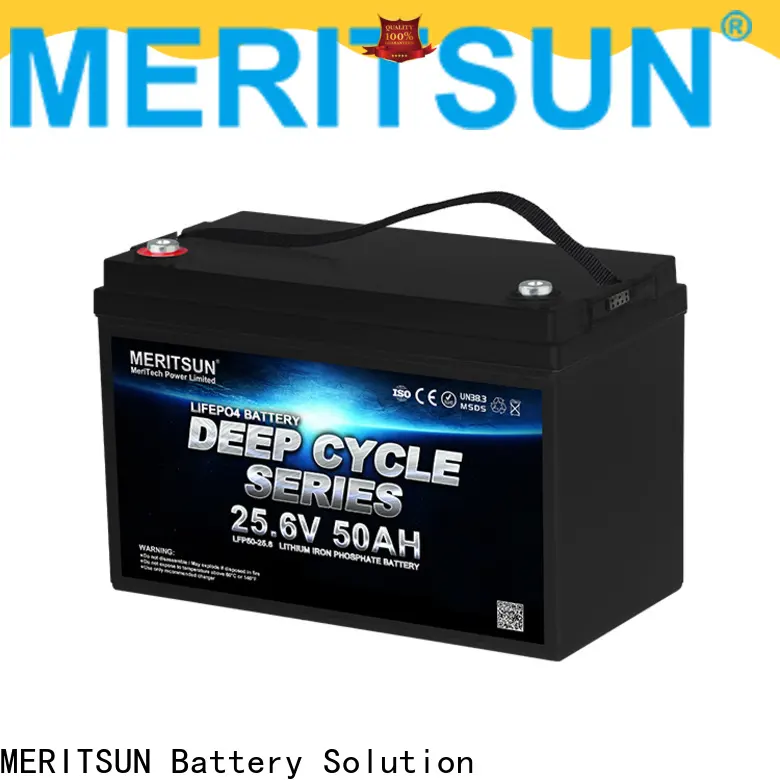

high-quality lithium iron battery customized for building
1. The production of MERITSUN lithium iron battery needs various sophisticated equipment, including heat sealing machine, air mold welding machine, air mold edge sealing machines, etc. The product is characterized by thermal performance
2. People do not have to worry that the capacity of the product will leak away when they are not using it. Before shipment, the product will undergo 45 kinds of detailed tests
3. The product is safe. It has passed the tests for substances, such as Formaldehyde testing, Banned azo colorants testing, and Dimethyl fumarate testing. It can be used within a wider temperature range from -20℃ to 65℃
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 50Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 45A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 8S2P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is a reliable manufacturer in the domestic and international market, leveraging years of experience in the design and production of where can i buy lithium batteries .
2. The company has a QC team who are in charge of product quality throughout the production processes. They are experienced and have abundant knowledge about the products, which ensures them to be qualified in quality control.
3. The goal of our company is to give back to the community and society. We will never compromise on quality and safety. We only dedicate the best to the world. Inquire now!
