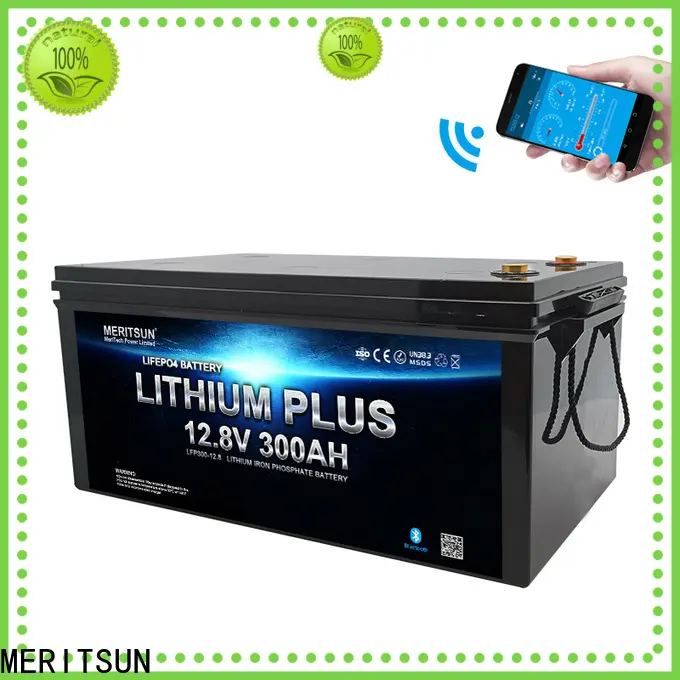

high-quality bluetooth lithium battery with good price for robot
1. The raw materials of MERITSUN lifepo4 lithium battery undergo a screening process. It is produced in strict accordance with the UL standard
2. Quality guarantee system has been improved in MeriTech Power Co.,Ltd. over the years. It has passed the certification of TLC, TUV, RoHS, and so on
3. Our products have been certified by many recognized standards, such as ISO quality standards. Its long cycle life with over 2000 cycles helps owners reduce replacement cost
4. This product is noted for its high quality and reliability. Made of reliable chemical substances, the product is of superior safety
5. Durable in use: the quality of this product is assured base on its perfect design and fine craftsmanship. Thus it can be use-durable for a long time if it is maintained properly. It can be used within a wider temperature range from -20℃ to 65℃
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 100Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >4000 cycles | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 49A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 8S10P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 522*240*224mm | |
Weight (lbs./kg.) | 30.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. We have a robust manufacturing plant. It is centrally located with easy access to global markets, as well as emerging markets in Africa and Asia.
2. MeriTech Power Co.,Ltd.'s vision is to become the leader in providing bluetooth lithium battery and services for customers. Please contact.
