environment friendly buy li ion battery factory direct supply for solar MERITSUN
Model:

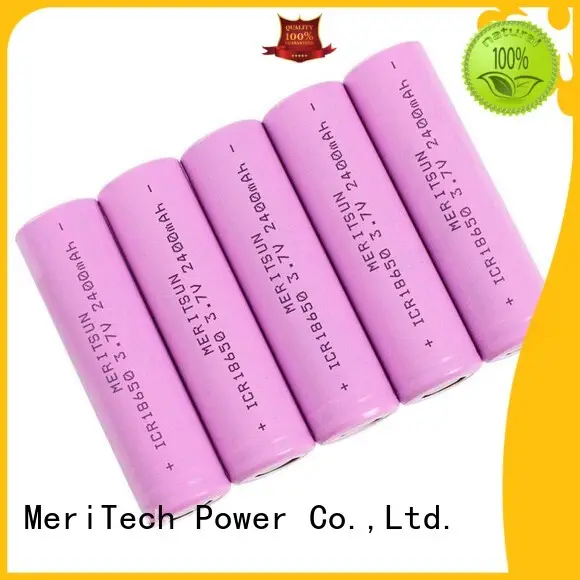

ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. The design of MERITSUN buy li ion battery involves many considerations. They may include stress points, support points, yield points, wear resistance capacity, toughness, and friction force.
2. MeriTech Power Co.,Ltd.'s operating business awareness has continued to rise. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
3. The product has the advantage of strong compatibility. It can perfectly work with other mechanical systems to bring out the best results. It can be used within a wider temperature range from -20℃ to 65℃
4. The product can be used for a long time. Its mechanical components are sturdy enough to wear over time and require little maintenance within its service life. It is produced in strict accordance with the UL standard
![]()
![]()
1. The design of MERITSUN buy li ion battery involves many considerations. They may include stress points, support points, yield points, wear resistance capacity, toughness, and friction force.
2. MeriTech Power Co.,Ltd.'s operating business awareness has continued to rise. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
3. The product has the advantage of strong compatibility. It can perfectly work with other mechanical systems to bring out the best results. It can be used within a wider temperature range from -20℃ to 65℃
4. The product can be used for a long time. Its mechanical components are sturdy enough to wear over time and require little maintenance within its service life. It is produced in strict accordance with the UL standard
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
