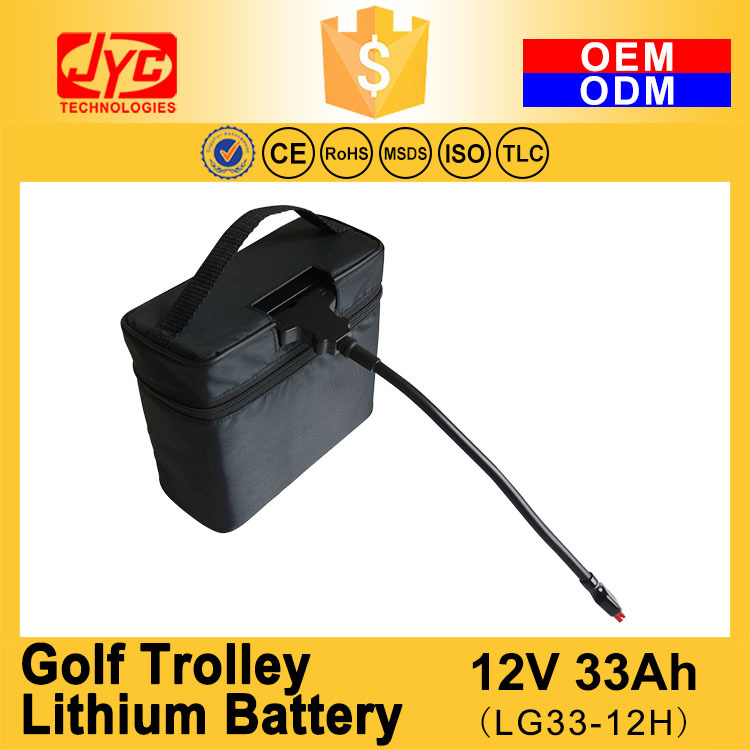

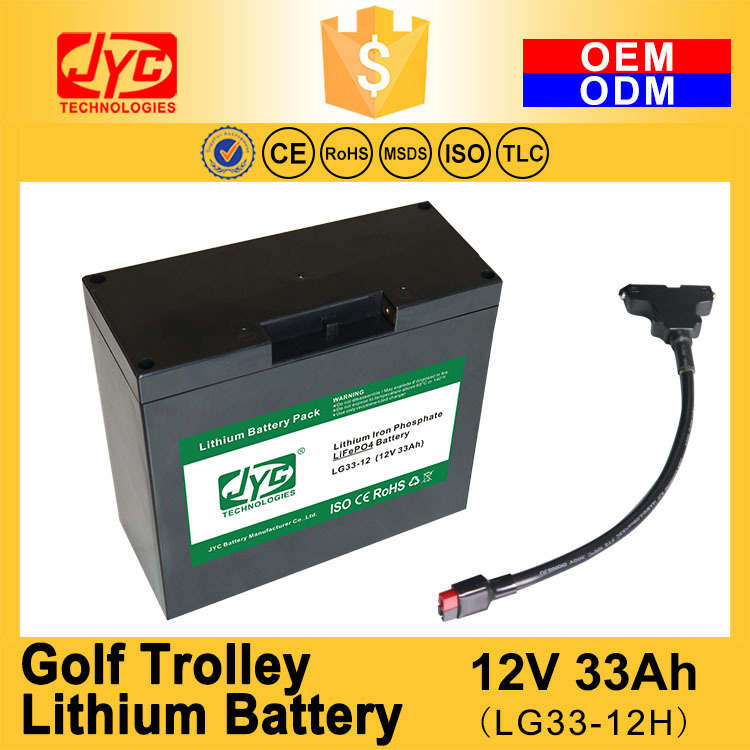

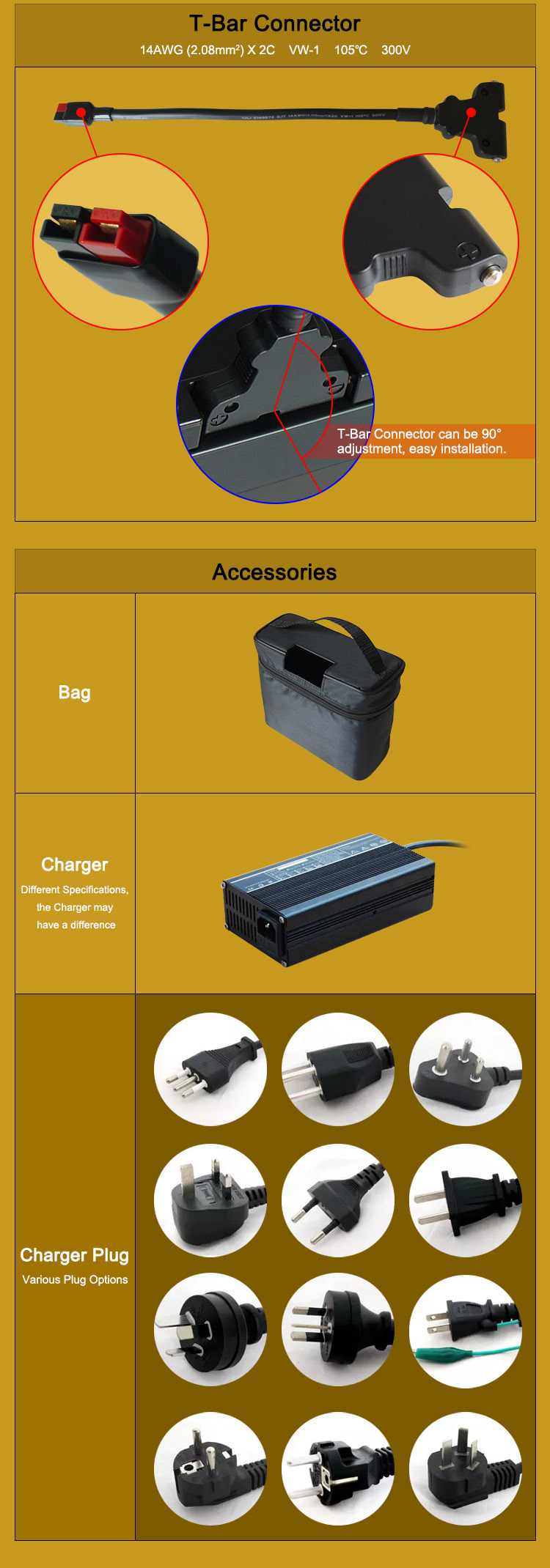

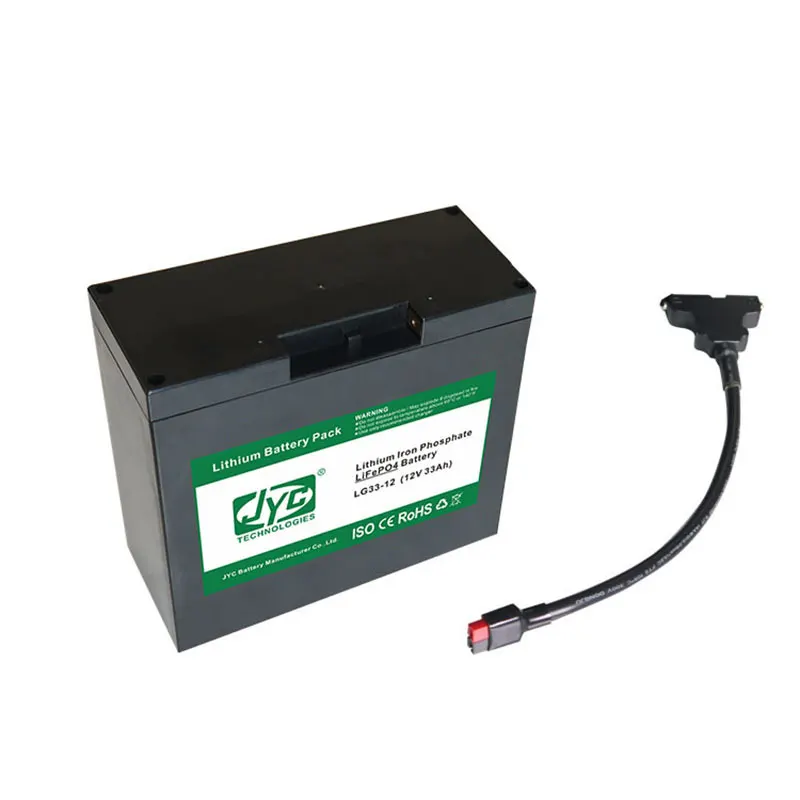

Electric Golf Trolley T-bar Connector Lifepo4 Battery Pack Lithium Battery 12V 33ah Cycle Life >2000 Cycles
Electric Golf Trolley Lithium Battery 12V 33Ah Cycle Life >2000 cycles T-Bar Connector Lifepo4 Battery Pack
| Product Description |
|
Items |
Standard |
Coments |
|
Nominal voltage |
12V |
|
|
Typical capacity |
33.0Ah |
At 0.2C discharge rate |
|
Minimum capacity |
33.0Ah |
|
|
Size(L*W*H) |
182*78*168 mm |
|
|
Weight |
Approx 3.8±0.1Kg |
|
|
Max. Continuous Discharge Current |
25A |
|
|
Over current protection |
150±10A |
|
|
Discharge cut-off voltage |
10V |
|
|
Charge voltage |
14.6±0.1V |
Charge mode: CC/CV |
|
Charge current |
5A |
Use a constant current, constant voltage(CC/CV) lithium-ion (Li+) battery charge controller. |
|
Inner resistance |
≤40 mΩ |
Between positive and negative polar of discharge port |
|
Operation temperature range |
Charge: |
0℃~+45℃ |
|
Discharge: |
-20℃~+65℃ |
|
|
Storage temperature range |
0℃~40℃ at half charged state |
Recommended long-term storage temperature is 15~25℃ |
|
Storage environment humidity |
RH: 65±20% |
|
|
Environment humidity |
≤85%RH |
|
|

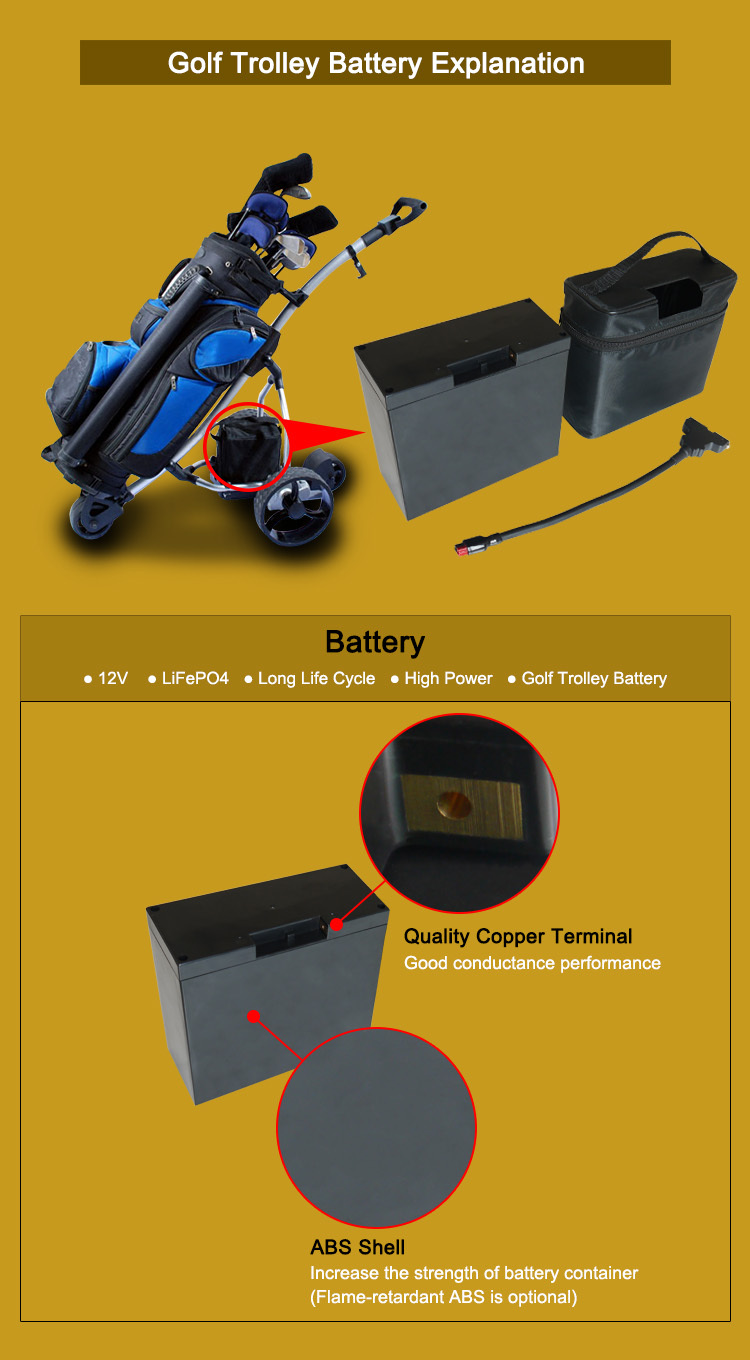

Shell material |
ABS |
|
|
Case Color |
Green / Red / White / Black / Yellow / Customizable |
|
|
Remarks |
We can develop the new models and battery string cases as requested by customer. |
|
.
.
.
.
The Product Feature, please refer to:

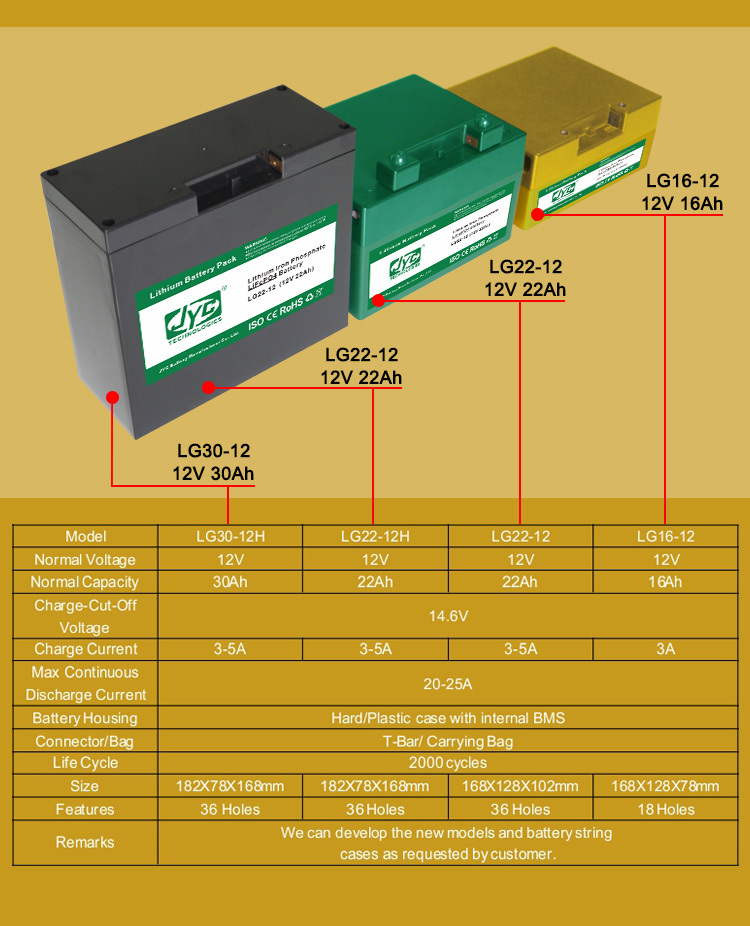

Golf Trolley Battery Series
| Company Information |
1. An excellent team which is experienced with market and has strong
techni-cal capability to customize cost effective.

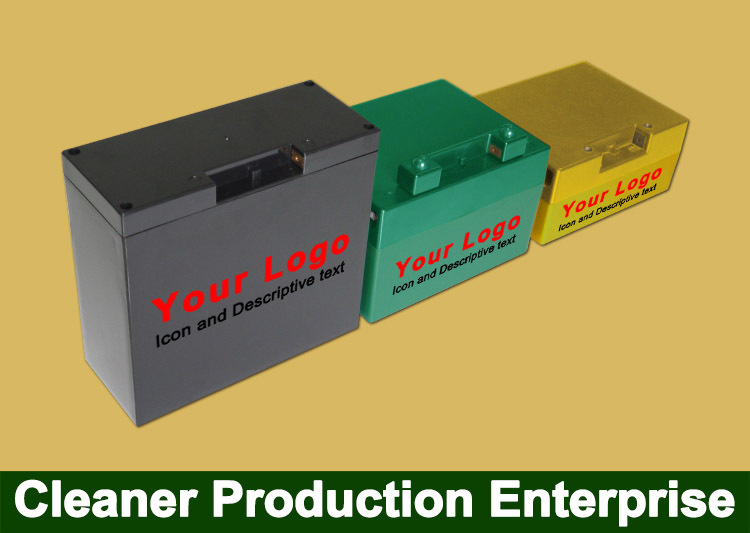

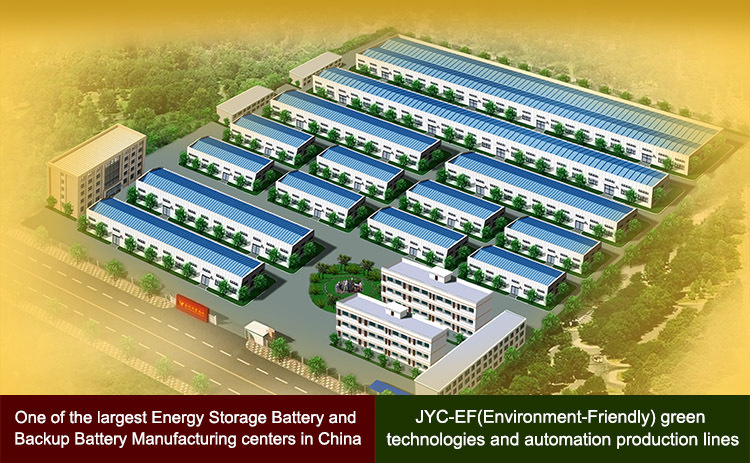

2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
.
| OBM / OEM / ODM |
JYC Power Specialist will estimate your power needs, identify potential problem
areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
.
| Certifications |
| Packaging |
|
Applied Scope (Industry Solutions) |
JYC has the proven solution. JYC already provides security and stable
to millions of users as a global.
|
JYC has the proven solution. | > Wind-Solar Energy Storage system
| > Solar street lights
JYC already provides security and | > Off-grid energy storage
stable to millions of users as a global. | > Household energy storage
| > Telecom backup system
| > Emergency backup energy sources
| > Uninterruptible power system
| > Mobile base stations
| > Grid load shifters
| > Electric Golf Car
| > Electric vehicles
| > Electric motorcycles
| > Electric forklifts
| > Electric boats, etc
.
|
Instruction / Note |
|
Battery Operation Instructions: |
|
1. Charge:Connecting the battery pack to the charge controller, connect the charger to recharge. |
|
2. Discharge:Connecting the battery pack to the load, connect the load to discharge. |
|
3. When you combine the battery with series or parallels, if there are oxidation layer on the surface, you Should brush surface to the metal glow with thin steel brush to lower the connective resistance to the minimal resistance. |
|
4. When combining with many batteries, if the voltage between the two electrodes is over 36V, the safe Voltage for human beings, to guarantee the safety, you should not touch the two electrodes with your body. |
|
Notes: |
|
1. If shelve a long time, need for regular recharging (even if not use), must charge and discharge for three months one time; |
|
2. Do not expose the battery to extreme heat or flame. |
|
3. Do not short circuit, over-charge or over-discharge the battery pack; |
|
4. Do not disassemble or modify the battery pack. |
|
5. Do not handle or store with metallic like necklaces, coins or hairpins, etc. |
|
6. Do not reverse the polarity of the battery pack for any reason. |
|
7. Do not immerse the battery pack in water or sea water, or get it wet. |
|
8. Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller. |
