easy to install residential energy storage systems supplier for base transceiver station
1. residential energy storage systems take precedence over other similar products due to its power storage devices materials. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
2. Once the order residential energy storage systems details are confirmed, MeriTech Power Co.,Ltd. will arrange the production for customers. It is packed with high-quality and sturdy packages
3. The product has optimized air permeability. No matter its ventilated design nor its ultra-fiber materials are all adopted in this product to guarantee the dry environment. It is produced in strict accordance with the UL standard
4. The product is able to retain its original shape. It has passed the bonding tests to maintain its integrity under a certain degree of stress. The charge rate of the product is strong, shortening the charge time efficiently

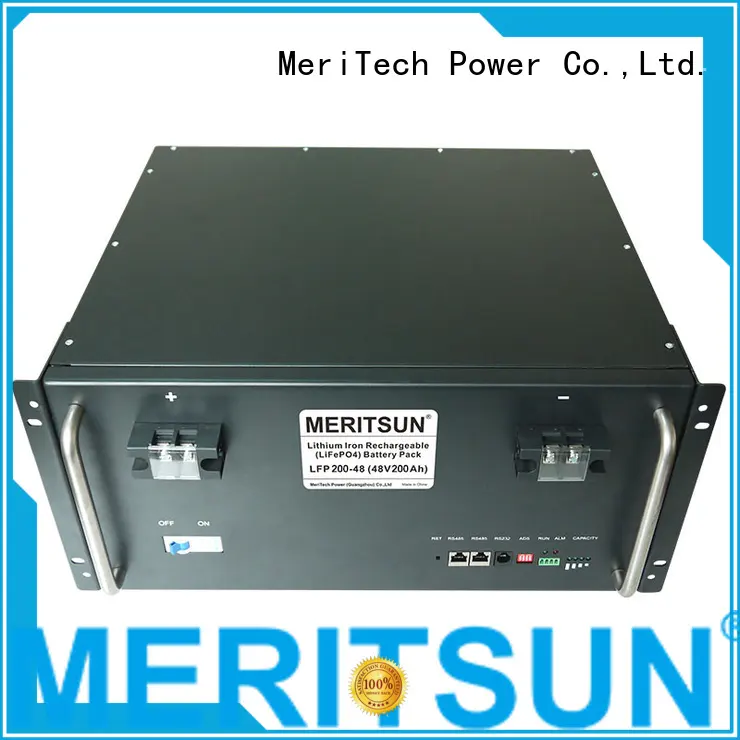

Electrical Characteristics | Model | 48V 200Ah (LiFePO4 Lthium iron Phosphate Battery) | |||||
| Energy | 9600Wh | ||||||
| Internal Resistance | ≤50mΩ | ||||||
| Cycle Life | ≥4000 cycles @1.0C 100%DOD | ||||||
| Months Self Discharge | <3% | ||||||
Standard Charge | Charge Voltage | 56.8~57.6V | |||||
| Charge Mode | 0.2C to 57.6V, then 57.6V,charge current to 0.02C (CC/CV) | ||||||
| Charger Current | ≤100A | ||||||
| Max. Charge Current | 100A | ||||||
| Charge Cut-off Voltage | 57.6±0.2V | ||||||
| Standard Discharge | Continuous Current | 40A | |||||
| Max continuous discharge current | 100A | ||||||
| Discharge Cut-off Voltage | 42.5~45.5V | ||||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity | |||||
| Discharge Temperature | -20 ℃ to 55 ℃ (-4℉ to 131℉) @60±25% Relative Humidity | ||||||
| Storage Temperature | -10℃ to 65 ℃ (14℉ to 149℉) @60±25% Relative Humidity | ||||||
| Mechanical | Cell & Method | BT-P48100X-6 1S2P | |||||
| Shell material | iron | ||||||
| Dimensions | 442*450*250mm | ||||||
| Weight (lbs./kg.) | Approx: 90kg | ||||||
| Gravimetric specific energy | 101WH/KG | ||||||
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Company Features
1. Our company is formed by a group of specialists whose aim is to provide premium quality and innovative products. They are experienced in creating market-oriented products with little distinctive uniqueness.
2. Our Research & Development department plays a central role in achieving our business objectives. Their high level of expertise and experience are put to good use in shaping the development process. Inquiry!
