easy to install battery energy storage system supplier for base transceiver station
1. The whole production of MERITSUN battery energy is finished by our professional craftsmen
2. MeriTech Power Co.,Ltd. has always been guided by the needs of its customers. Before shipment, the product will undergo 45 kinds of detailed tests
3. battery energy storage system avoids traditional disadvantages of battery energy to offer a better performance for users. The product is designed with a protection circuit which can totally ensure the safety of users
4. MeriTech Power Co.,Ltd.has the competence to produce battery energy storage system with battery energy . The weight of the product is about 40% of the weight of a comparable lead-acid battery
Electrical Characteristics | Model | 48V 100Ah (LiFePO4 Lthium iron Phosphate Battery) |
| Energy | 4800Wh | |
| Internal Resistance | ≤80mΩ | |
| Cycle Life | >4000 cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Charge Voltage | 54.0±0.1V |
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |
| Charger Current | 20A (Customizable) | |
| Max. Charge Current | 50A (Customizable) | |
| Charge Cut-off Voltage | 57.6±0.2V | |
| Standard Discharge | Continuous Current | 20A (Customizable) |
| Max continuous discharge current | 50A (Customizable) | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |
| Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S2P |
| Shell material | iron | |
| Dimensions | 442*400*221mm | |
| Weight (lbs./kg.) | Approx: 60kg (132.27 Ibs) | |
| Gravimetric specific energy | 80WH/KG |

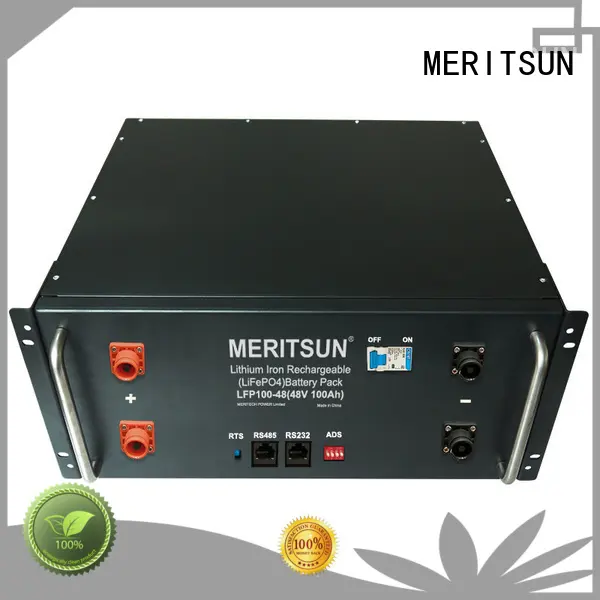

The 48V 100Ah ESS Energy Storage System LiFePO4 Battery
Internal structure, please refer to:
System Diagram of Lithium Module and BMS
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MERITSUN has strong strength in producing battery energy storage system .
2. MeriTech Power Co.,Ltd. has successfully got several patents for technology.
3. As a company committed to sustainable development, we have created pioneering and sustainable alternatives to create greater international living conditions.
