custom icr 18650 battery customized for electric vehicles
Model:

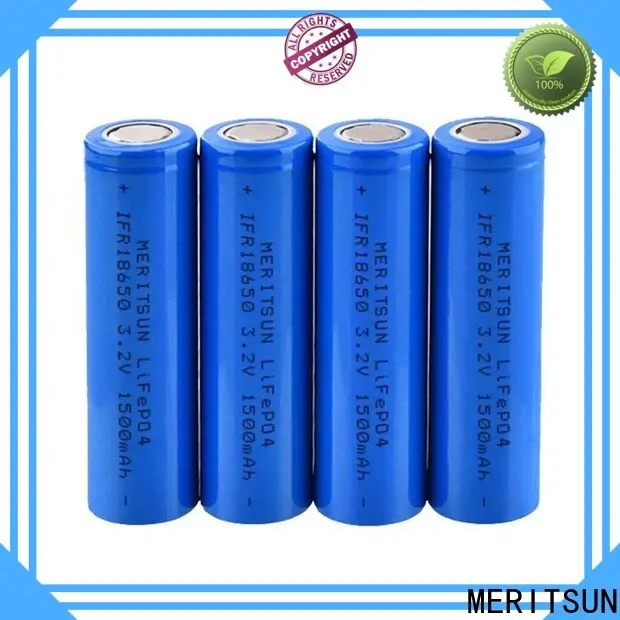

IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. The technical production standard of MERITSUN lithium battery 18650 suppliers far exceeds the market average. It is packed with high-quality and sturdy packages
2. People all praise that not only can this product be used repeatedly, but it generates less waste over the long-term. It has passed the certification of TLC, TUV, RoHS, and so on
3. It might be the best choices for allergy sufferers. Allergens like dust mites and pollen cannot get in the densely weaved strands. The product is designed with a protection circuit which can totally ensure the safety of users
4. This product is somewhat fire retardant. The insulating materials used for this product meet higher demands in glow wire testing. Strong reliability is one of the features of the product
5. This product is anti-pill and does not form small strands on the surface over time as long as under proper care. The charge rate of the product is strong, shortening the charge time efficiently
1. The technical production standard of MERITSUN lithium battery 18650 suppliers far exceeds the market average. It is packed with high-quality and sturdy packages
2. People all praise that not only can this product be used repeatedly, but it generates less waste over the long-term. It has passed the certification of TLC, TUV, RoHS, and so on
3. It might be the best choices for allergy sufferers. Allergens like dust mites and pollen cannot get in the densely weaved strands. The product is designed with a protection circuit which can totally ensure the safety of users
4. This product is somewhat fire retardant. The insulating materials used for this product meet higher demands in glow wire testing. Strong reliability is one of the features of the product
5. This product is anti-pill and does not form small strands on the surface over time as long as under proper care. The charge rate of the product is strong, shortening the charge time efficiently
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
