battery life control 1c MERITSUN Brand lifepo4 battery supplier
1. OEM and ODM services are available for us. As one of the unique feature, lifepo4 battery price successfully makes lifepo4 batteries for sale more popular among customers. OEM and ODM services are available for us
2. MeriTech Power Co.,Ltd., well-known for its superior quality, will provide first-class service. Established in 1999, we have 18 years experience in energy power industry
3. With high voltage and low self-discharge, our products are environmentally-friendly. lifepo4 battery,lifepo4 battery manufacturers has the functions such as lifepo4 battery wholesale as compared with other similar products.
4. We mainly focus on alternative green energy from Lead Acid battery. Especially designed for 48v 20ah lifepo4 battery, lifepo4 battery pack,12v lifepo4 lithium battery is also comfortable at the same time.
5. We package your lifepo4 battery 12v products under cleanroom conditions, with the greatest care, using validated processes. There are many successful cases with our products.

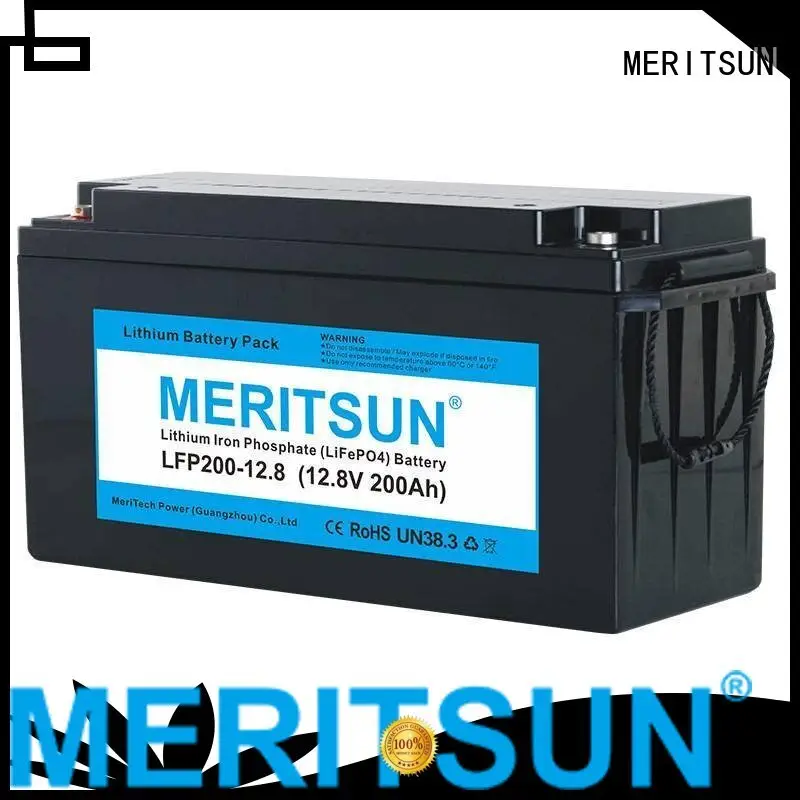

Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 200Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤180mΩ | |
Cycle Life | >2000 cycles @1C 100%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 60A | |
Max. Charge Current | 80A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 60A |
Max. Pulse Current | 350A(<10s) | |
Discharge Cut-off Voltage | 8V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 4S20P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 485*170*245mm | |
Weight (lbs./kg.) | 25kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
The Product Feature, please refer to:
OBM / OEM / ODM Service
The OBM / OEM / ODM Service with regard to 12V 200Ah LiFePO4 Lipo Li-ion Lithium ion Battery
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
Technology info
The Technology info with regard to 12V 200Ah LiFePO4 Lipo Li-ion Lithium ion Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
The Packaging with regard to 12V 200Ah LiFePO4 Lipo Li-ion Lithium ion Battery
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. Fully specialized in the R&D and production of lifepo4 battery, MeriTech Power Co.,Ltd. is globally recognized.
2. There is strict testing for quality of lifepo4 battery pack to make satisfying products for customers.
3. Our lifepo4 battery 12v have been well sold to all over the world known as its lifepo4 battery price. Get info!
