app lifepo4 battery cycle MERITSUN company
1. We can provide you with the perfect smart power energy system solutions. MERITSUN factory has established itself as a leading manufacturer, trader, and manufacture of lifepo4 battery price in the market.
2. We are dedicated to manufacturing and designing LiFePO4 and lithium cells. MERITSUN is full of vitality, energy and warrior spirit.
3. An integrated team of consultants and practitioners – seasoned expert engineers with multi-sector manufacturing experience – lifepo4 battery brings together a world-class combination of improvement competency, insight, process and best practice. We integrate battery packs for Green Energy Storage Systems
4. lifepo4 battery pack are packed with advanced control circuitry along with compressor saver technology that makes it highly recommended among others. We use high purity raw material to ensure low self discharge rate
5. All of the lifepo4 battery 12v can be produced according to every client’s various needs. What you want is what we can do for you. OEM and ODM services are available for us

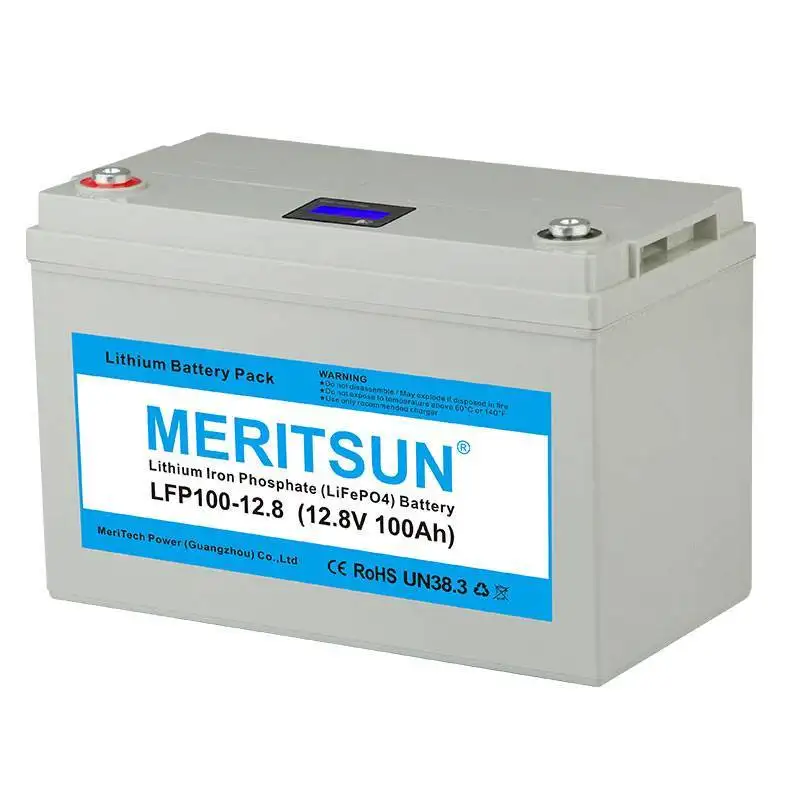

Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >2000 cycles @1C 100%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |

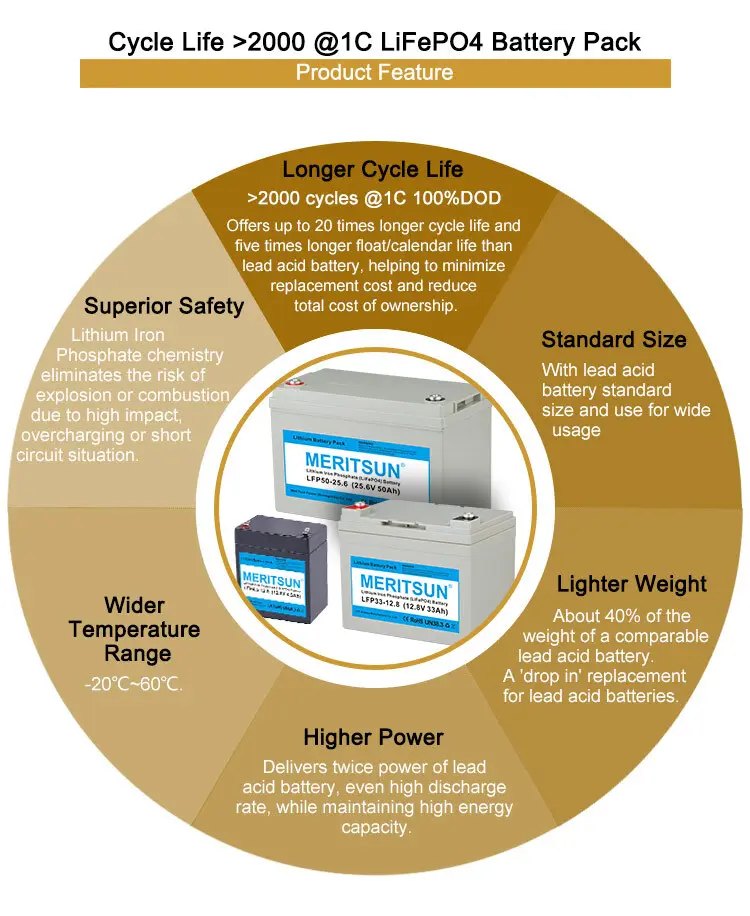

The Product Feature, please refer to:
OBM / OEM / ODM Service

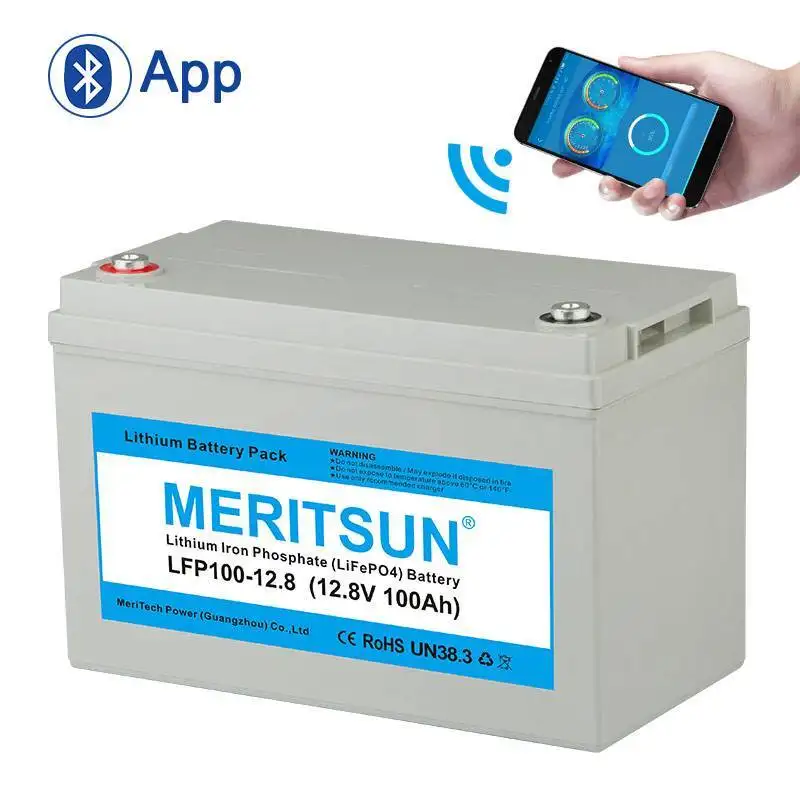

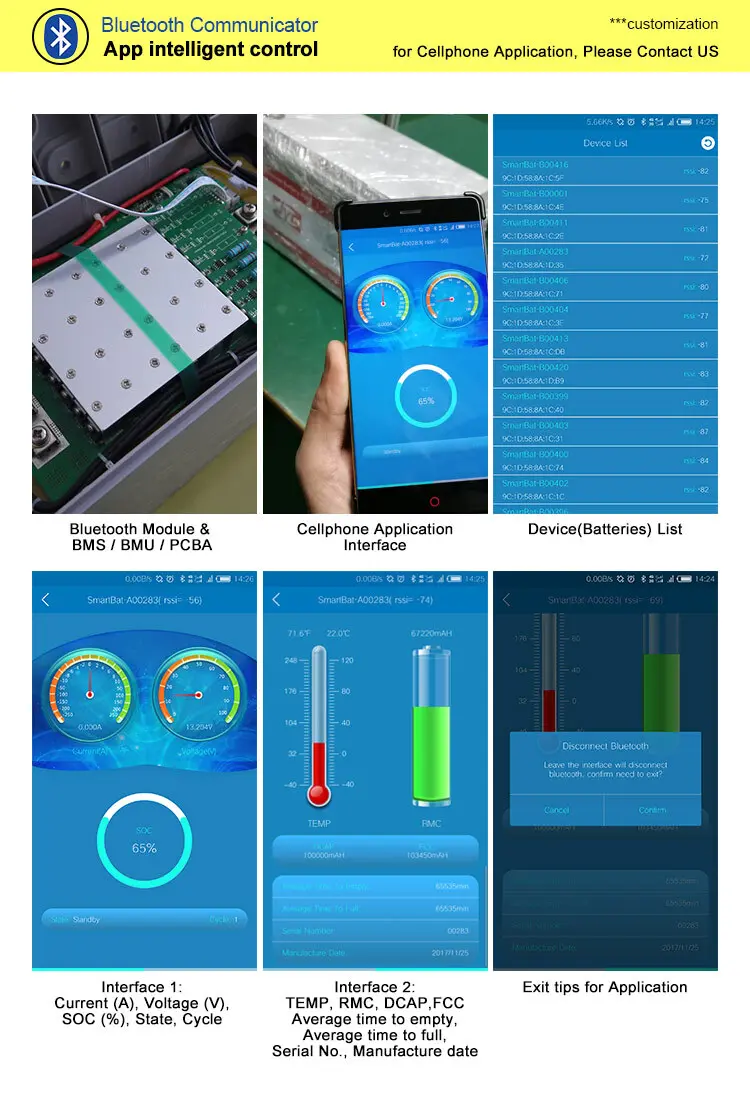

The OBM / OEM / ODM Service with regard to APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Polymer Battery Pack
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.

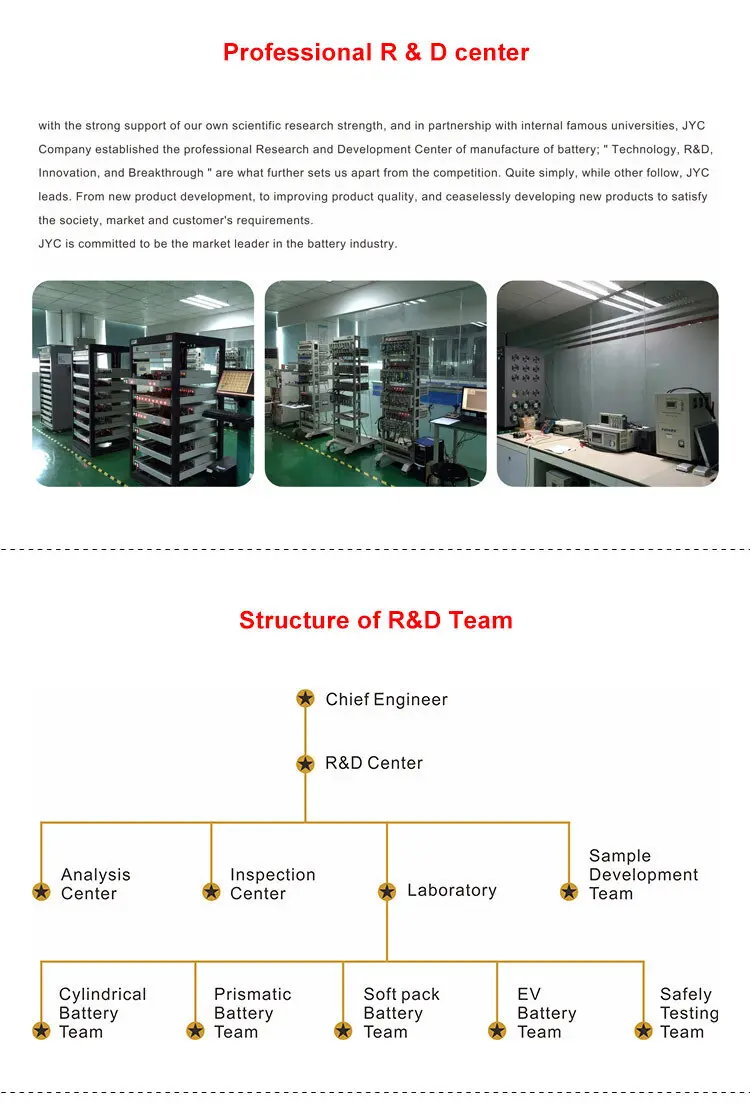

Technology info
The Technology info with regard to APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Polymer Battery Pack
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)

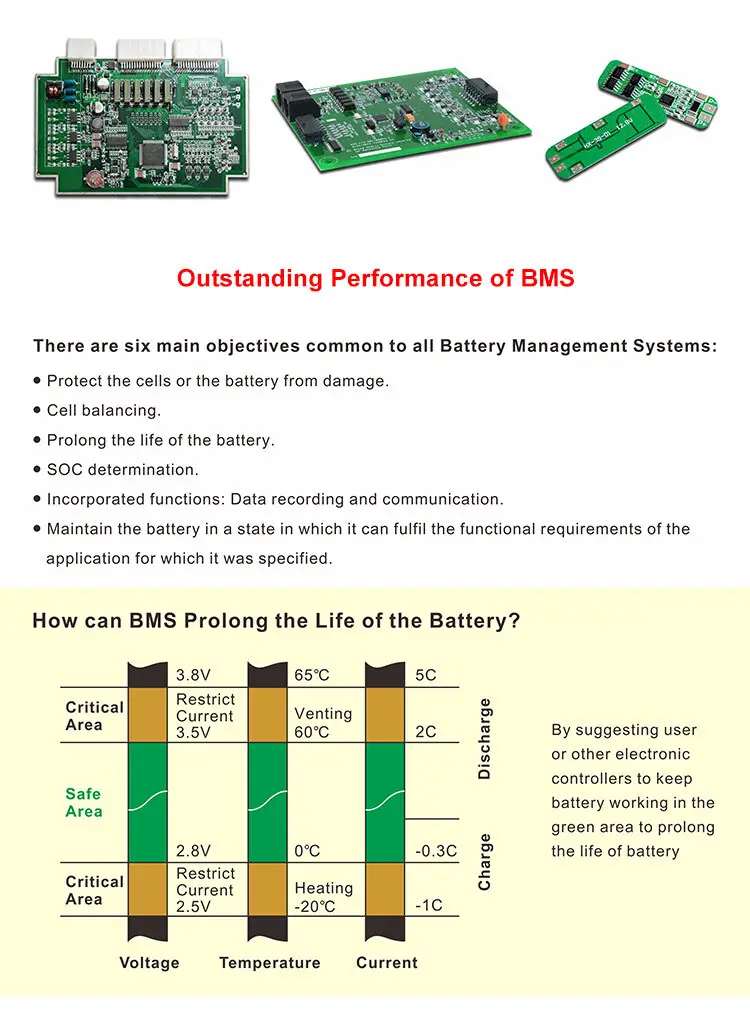

MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
The Packaging with regard to APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Polymer Battery Pack
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is a leading lifepo4 battery enterprise which has superiority in innovation. - MeriTech Power Co.,Ltd. has a strong and complete production capacity.
2. More and more customers choose MERITSUN for its high-class quality.
3. MERITSUN Battery Solution's technology is of professional level. - We are committed to delivering operational excellence and the lowest cash cost of production.
