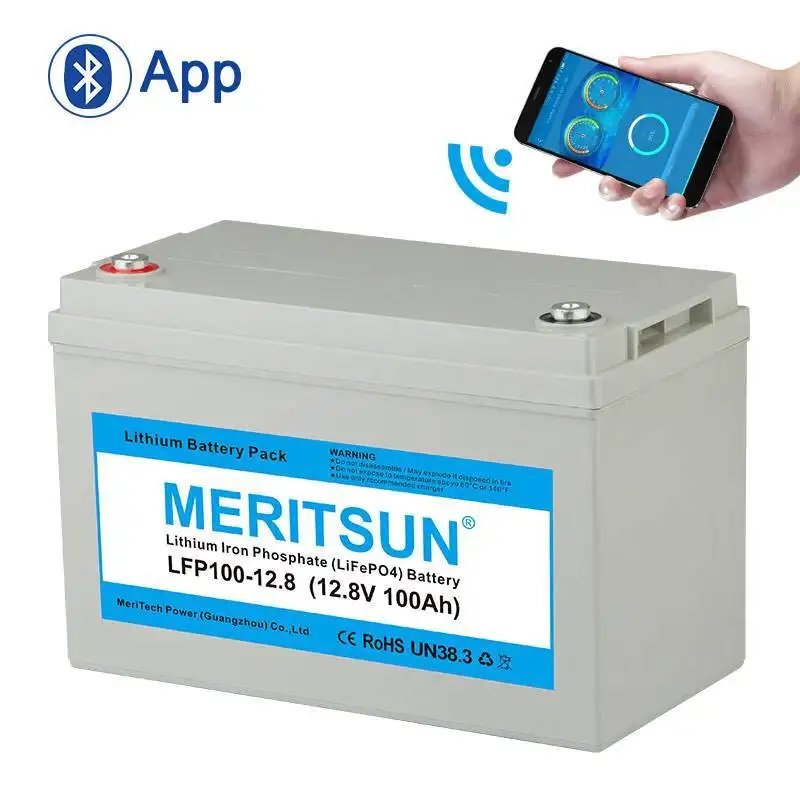

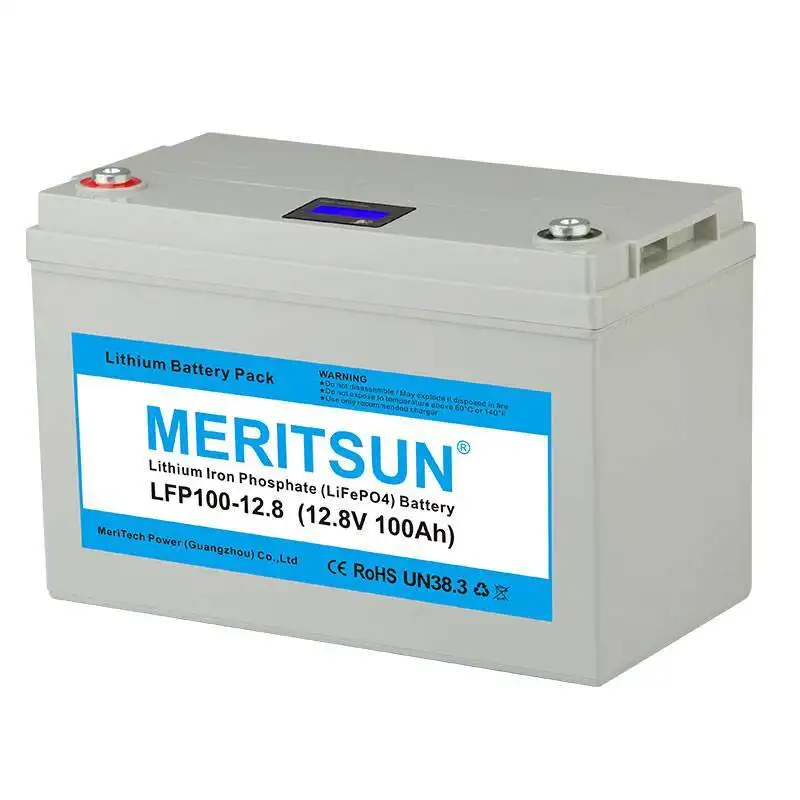

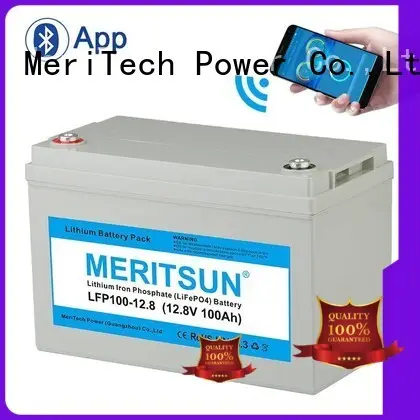

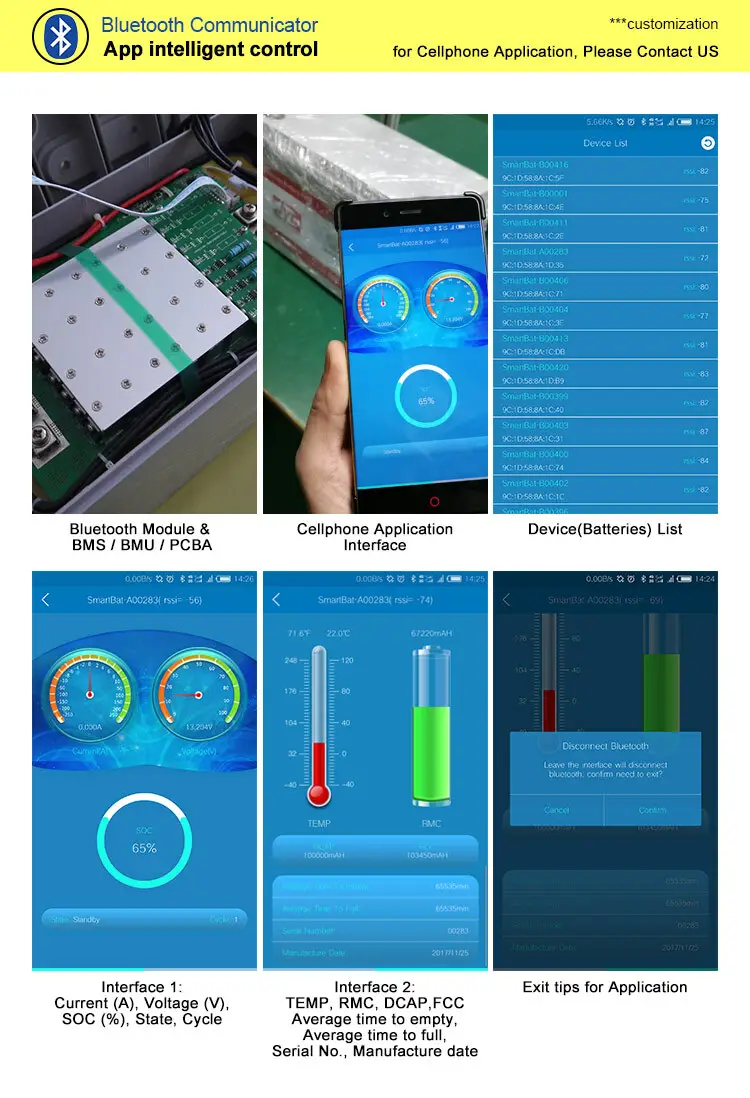

APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Battery Pack
- Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. strictly follows the actual needs of customers and provides them with professional and quality services.
1. MERITSUN lithium battery manufacturers is manufactured through a series of processes to harmonize the needs of hygiene with the aesthetics of enduring simplicity and beauty.
2. It delivers great benefits to customers with longer service life and stable performance.
3. Quality is what MERITSUN product can do for customers.
4. Most people agree that the product provides a good power backup solution. People can use it when an emergency happens.
5. If people recycle this product, they can contribute a lot in reducing global warming. Because it reduces the emission of various toxin gases caused by the dumping or burning of this product.
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >2000 cycles @1C 100%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |

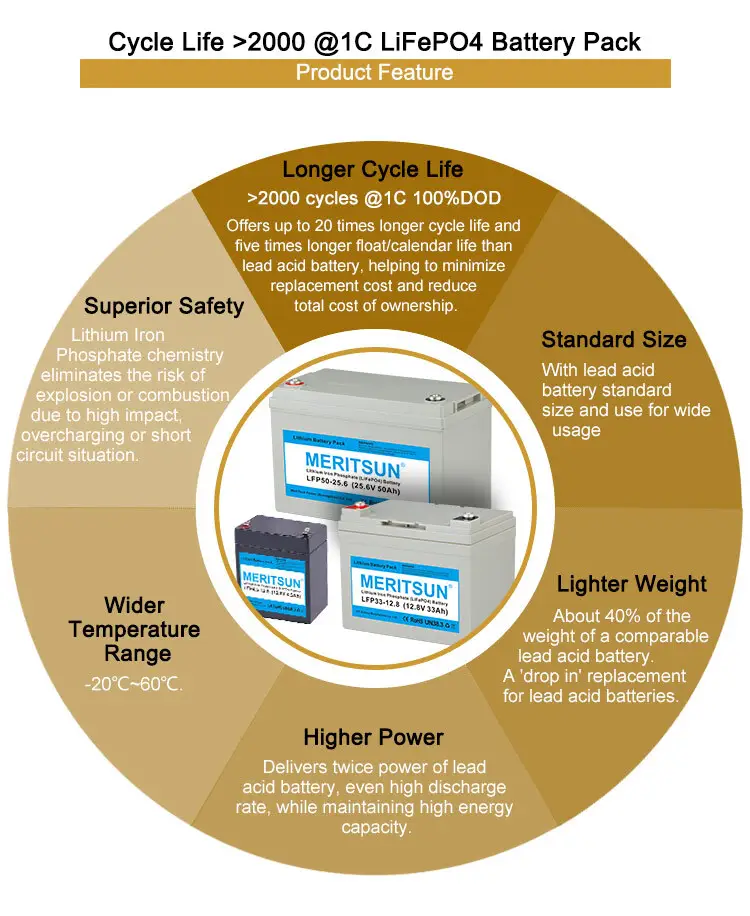

The Product Feature, please refer to:
OBM / OEM / ODM Service
The OBM / OEM / ODM Service with regard to APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Polymer Battery Pack
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
Technology info
The Technology info with regard to APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Polymer Battery Pack
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)

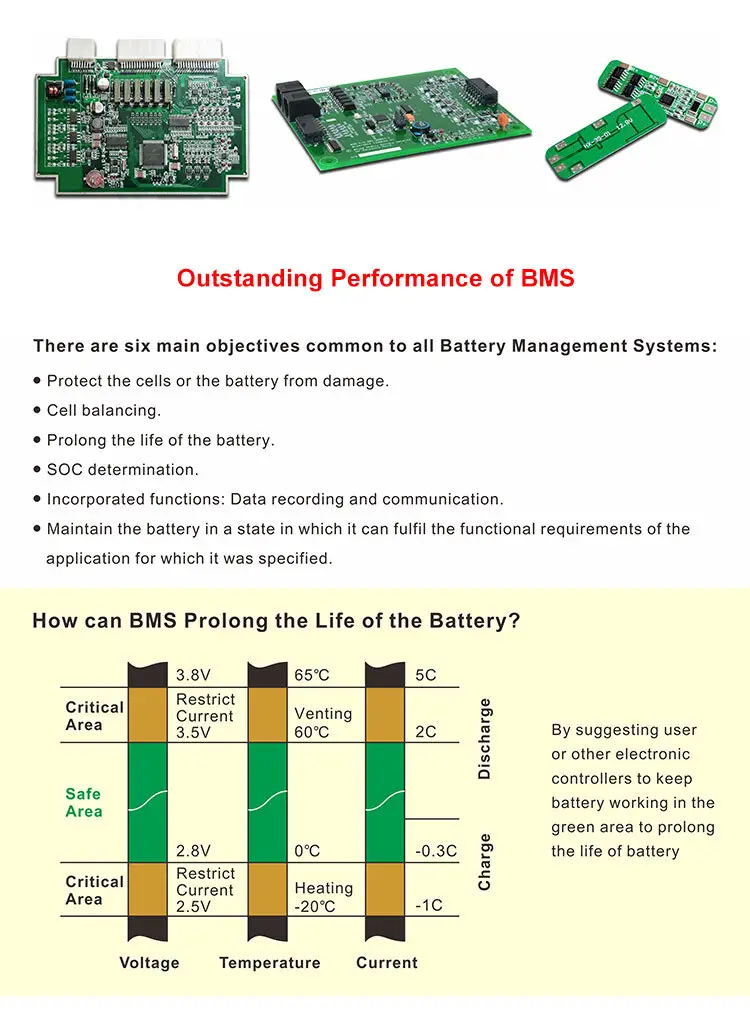

MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
The Packaging with regard to APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Polymer Battery Pack
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. Known to be a large manufacturer for lithium battery manufacturers , MeriTech Power Co.,Ltd. has a wide market share.
2. MeriTech Power Co.,Ltd. always takes steps to ensure the quality of its products.
3. MeriTech Power Co.,Ltd. will make unremitting efforts to build a world-class lifepo4 battery 12v enterprise group. Please contact us! The satisfaction of customers is what MeriTech Power Co.,Ltd. has always been pursuing for. Please contact us! The friendly cooperation with lifepo4 battery pack 12v helps the growth of MERITSUN. Please contact us!
