Company Advantages1. Essential tests for MERITSUN lithium ion home battery have been carried out by third-party testing labs. They are tear strength testing, tensile properties checking, flex & fatigue resistance testing, perforation resistance testing, and cut resistance testing. The charge rate of the product is strong, shortening the charge time efficiently
2. People will find this product saves time and effort and saves money. It helps reduce potential business difficulties and make people's business easier and faster. It can be widely applied in diverse areas ranging from small appliances and IT devices
3. The product is of good quality and excellent performance. The product is produced under the principle of environmental protection
4. This product has brought a lot of economic benefits to customers, and it is believed that it will be widely used in the market. Strong reliability is one of the features of the product
5. This product is highly regarded in the market for its best quality. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
![all-in-one home battery backup wholesale for picnic 11]()

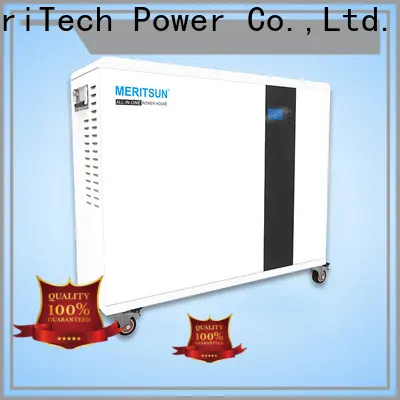

Feature
1.Built in Inverter and Smart BMS.Save installation time and labor.
2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
![all-in-one home battery backup wholesale for picnic 12]()
| Models | AI 3K | AI 5K |
| Models |
|
| Nominal Voltage [V] | 51.2 |
| Voltage Range [V] | 44.8~57.6 |
| Capacity | 3KWH | 5KWH |
| Max.discharge rate | 0.7C | 0.7C |
| Max.charge rate | 0.5C | 0.5C |
| Battery Type | LiFePO4 Battery |
| AC Output |
|
| Rated Power | 3000VA | 5000VA |
| Overload Capacity | 120% (5s) |
| 200% (100ms) |
| Output Voltage | 230Vac±2% |
| Output Current | 13.7 A | 13.7 A |
| Rated Frequency | 50/60Hz |
| VTHD | 3% |
| Transfer Time | ＜10ms |
| Output Wave | Pure Sine Wave |
| Output Type | Output Type |
| AC Input Voltage Range | 170~280Vac |
| AC Input Frequency | 50Hz/60Hz |
| Max AC Charge Current(Battery) | 40A | 60A |
| PV Input |
|
| Max. PV Power(Recommended) | 3000w | 4000w |
| Max. PV Voltage | 145V |
| Max PV Charge Current(Battery) | 60A | 80A |
| Operating Conditions |
|
| Operating Temperature | 0~55℃ |
| Storage Temperature | -15℃~60℃ |
| Humidity | 5%~95% |
| Cooling Strategy | Fan |
| Weight [kg] | 42 | 60 |
| Dimension [W x H x D, mm] | 700*580*230 | 700*580*230 |
| Enclosure Protection Rating | IP31 |
| Communication | Wifi(Remote) |
| Work Mode |
|
| Solar First | Solar and UPS |
| Utility First | UPS and Backup |
| Solar—Battery—Utility | Solar—Battery—Utility |
![all-in-one home battery backup wholesale for picnic 13]()
![all-in-one home battery backup wholesale for picnic 14]()
![all-in-one home battery backup wholesale for picnic 15]()
![all-in-one home battery backup wholesale for picnic 16]()
![all-in-one home battery backup wholesale for picnic 17]()
![all-in-one home battery backup wholesale for picnic 18]()
![all-in-one home battery backup wholesale for picnic 19]()
Company Features1. MeriTech Power Co.,Ltd. achieves great success in exporting home battery backup. By keeping innovating the house power battery technology, we can stay ahead in the industry.
2. Processed by high technology, home battery backup enjoys great performance among the industry.
3. By establishing a high-tech laboratory, MERITSUN has enough capacity to create home battery backup. lithium ion home battery is the management tenet from the very beginning for MeriTech Power Co.,Ltd.. Inquiry!
