    Product Description

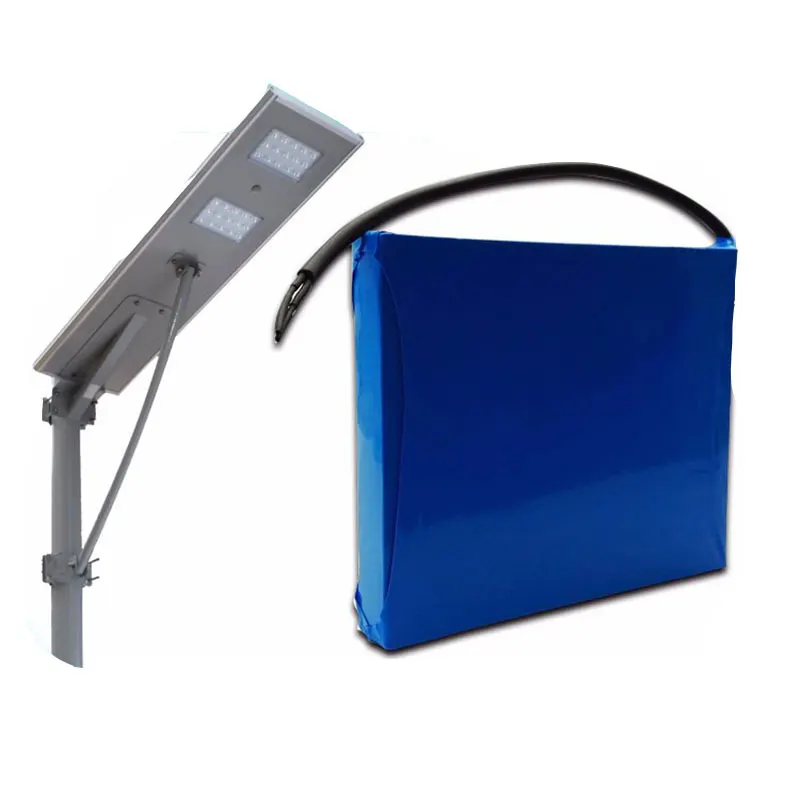

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light

    Lithium Ion - Li(NiMnCo)O2 brings together the high energy density of LiCo2 and the rate capability of LiMn2O4 to create a cell with moderate energy density and good power delivery. The reduction in Cobalt also helps reduce cost and improves safety.

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 3
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 5



    ▼ Li(NiCoMn)O2 Battery General Data

    Nominal Voltage
    12V
    Customizable
    Typical Voltage
    11.1V
    Customizable
    Rated Capacity
    30Ah (0.2C Standard discharge)
    Customizable
    Cell & Method
    3S4P
    Charge Cut-off Voltage
    12.6V ± 0.5V
    Discharge Cut-off Voltage
    9.0V ± 0.5V
    Continuous Current
    ≤3~8A
    Customizable
    Max. Pulse Current
    ≤10A
    Customizable
    Charger Mode
    Constant current-Constant voltage (CC-CV)
    Charger Current
    ≤3~8A
    Customizable
    Balanced Current
    30~50mA
    Optional
    Charge Temperature
    0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity
    Discharge Temperature
    -20~60℃ (-4℉ to 140℉) @60±25% Relative Humidity
    Canning Material
    Metal / PVC
    customizable
    Plug Type
    Direct wire connection
    customizable
    Dimension(mm)
    198(L)*165(W)*29(H)
    customizable
    Approx Weight
    ≤1.8kg

    Remarks
    1. Data for reference only, please contact sales for more information.
    2. We can develop the new models and battery string cases as requested by customer.



    ▼ Li(NiCoMn)O2 Battery Advantages

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 7
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 9
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 11
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 13
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 15
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 17
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 19
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 21
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 23
    Series and Solutions

    ▼  Design Combination of the Li(NiCoMn)O2 Battery Pack

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 25
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 27

    ▼ Solar Series Application Specification Table of Lithium Battery Pack

    No.
    Model
    Application
    Canning Material
    Note
    1
    12V6AH
    Solar signs / Solar Traffic Light / Solar garden light
    Plastic
    2
    12V8AH
    Solar signs / Solar Traffic Light / Solar garden light
    Plastic
    3
    12V15AH
    Solar street light / Solar Landscape Light / Solar garden light
    Metal
    4
    12V20AH
    Solar street light / Solar Landscape Light / Solar garden light
    Metal
    5
    12V30AH
    Solar street light
    Metal / PVC
    6
    12V40AH
    Solar street light
    Metal
    7
    12V50AH
    Solar street light
    Metal / PVC
    8
    12V60AH
    Solar street light
    Metal / PVC
    9
    12V100AH
    Solar street light
    Metal / Plastic
    10
    14.8V15AH
    Solar street light / Solar Landscape Light / Solar garden light
    Metal
    11
    14.8V30AH
    Solar street light
    Metal
    12
    12.8V15AH
    Solar street light
    Metal
    LiFePo4
    13
    12.8V20AH
    Solar street light
    Metal
    14
    12.8V30AH
    Solar street light
    Metal
    15
    12.8V40AH
    Solar street light
    Metal / Plastic
    16
    12.8V60AH
    Solar street light
    Metal / Plastic
    17
    12.8V90AH
    Solar street light
    Metal / Plastic
    ……
    ……
    ……
    ……
    ……
    Remarks
    We can develop the new models and battery string cases as requested by customer.




    ▼ Range of Application

    Solar street light,         Solar Landscape Light,           Solar garden lights
    Solar lawn light,           Solar Traffic Lights,                  Solar signs     ……

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 29
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 31
    Company Information
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 33

    1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
    ————————————————————————————
    2. Cleaner production enterprise in Guangzhou, China.
    ————————————————————————————
    3. OEM/ODM services backed by nearly 20 years' R&D experience.

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 35
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 37
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 39
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 41
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 43
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 45
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 47



    ▼ Certifications

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 49



    ▼ High Quality Post-Sale Service

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 51

    According to hands-on experiences of more than ten years in battery industry services and studying on international advanced service concepts, JYC sets up a formal, professional, fast, efficient service system. At the same time, JYC organized a professional and experienced service team.

    JYC throughout “quality and client” and pay much attention to "professional, perfect, formal, efficient" service at pre-sell, in-sale and post-sell . We make good effort to build a competitive advanced service system.

    R&D Technology

    ▼ Professional R & D center

    With the strong support of our own scientific research strength, and in partnership with internal famous universities, JYC Company established the professional Research and Development Center of manufacture of storage battery; " Technology, R&D, Innovation, and Breakthrough " are what further sets us apart from the competition. Quite simply, while other follow, JYC leads. From new product development, to improving product quality, and ceaselessly developing new products to satisfy the society, market and customer's requirements. JYC is committed to be the market leader in the storage battery industry.

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 53



    ▼ Structure of R&D Team

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 55



    ▼ Factors of Quality Guarantee

    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 57
    OBM-OEM-ODM
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 59
    12V 30AH Long Life Cycle Lithium Li(NiCoMn)O2 Battery for All in one Integrated Solar Street Light1 61
    The product is quite economical and is now widely used by people in all fields. It can be used within a wider temperature range from -20℃ to 65℃. The product is able to maximum satisfaction to the clients and is now widely used in the market. It can be used within a wider temperature range from -20℃ to 65℃.
