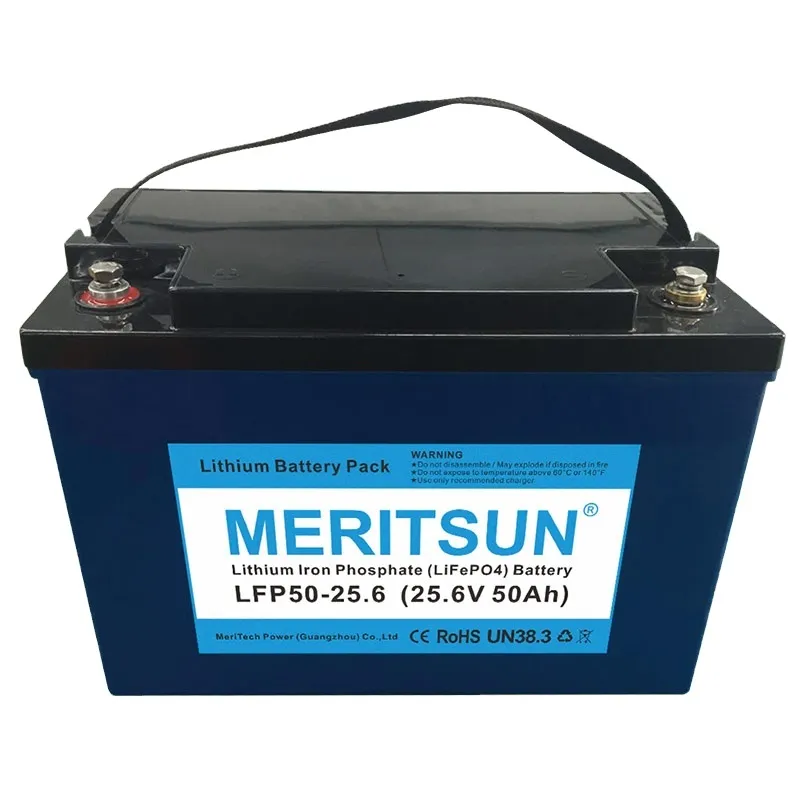

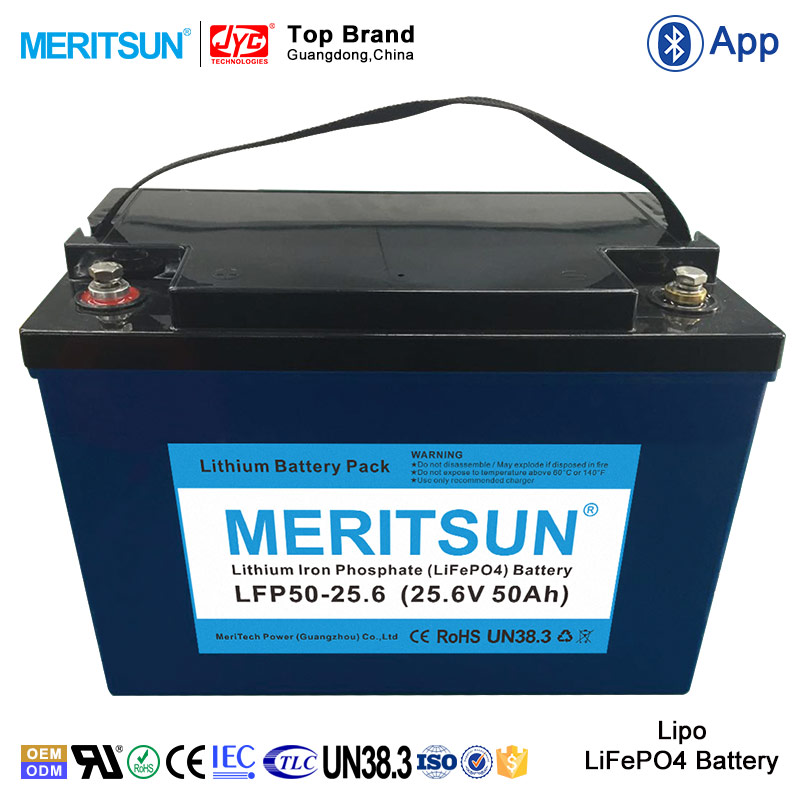

100%DOD >2000Times 24 Volt 24V 50Ah Li Lipo LiFePO4 Lithium ion Battery Pack for Electric Boat etc
100%DOD >2000Times 24 Volt 24V 50Ah Li Lipo LiFePO4 Lithium ion Battery Pack for Electric Boat etc

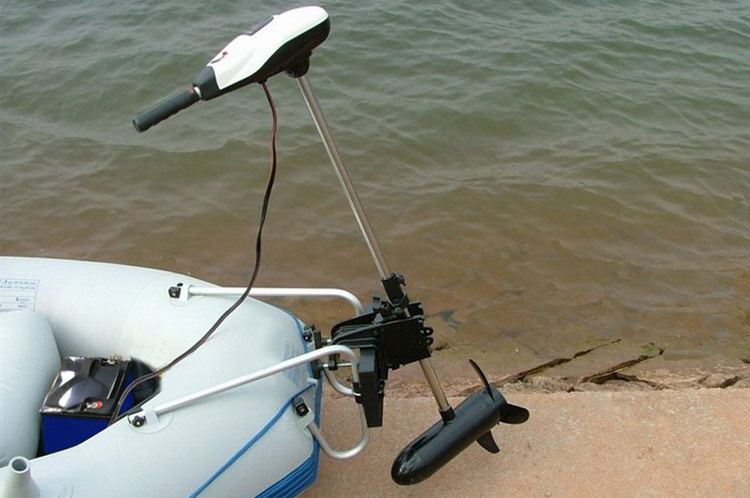

Purpose: Electric Boat Trolley Motor Power System
User: America 25.6V50Ah LiFePO4 Battery Bank
The battery performance can be customized, the following data for reference:
|
Electrical Characteristics |
Nominal Voltage |
25.6V (24V) |
|
Nominal Capacity |
50Ah |
|
|
Energy |
1280Wh |
|
|
Internal Resistance |
≤200mΩ |
|
|
Cycle Life |
>2000 cycles @1C 100%DOD |
|
|
Months Self Discharge |
<3% |
|
|
Efficiency of Charge |
100% @0.5C |
|
|
Efficiency of Discharge |
96~99% @1C |
|
|
Standard Charge |
Charge Voltage |
29.2±0.2V |
|
Charge Mode |
0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) |
|
|
Charger Current |
45A |
|
|
Max. Charge Current |
50A |
|
|
Charge Cut-off Voltage |
31.2V±0.2V |
|
|
Standard Discharge |
Continuous Current |
50A |
|
Max. Pulse Current |
100A(10~20s) |
|
|
Discharge Cut-off Voltage |
20V |
|
|
Environmental |
Charge Temperature |
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
|
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|
|
Storage Temperature |
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity |
|
|
Water Dust Resistance |
IP55 |
|
|
Mechanical |
Cell & Method |
3.2V25Ah 8S2P |
|
Plastic Case |
ABS |
|
|
Dimensions (in./mm.) |
330*173*220mm |
|
|
Weight (lbs./kg.) |
16kg |
|
|
Terminal |
/ |
|
|
Protocol (optional) |
/ |
|
|
SOC (optional) |
/ |
The Product Feature, please refer to:
.
The OBM / OEM / ODM Service with regard to 100%DOD >2000Times 24 Volt 24V 50Ah Li Lipo LiFePO4 Lithium ion Battery Pack for Electric Boat etc
JYC is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
JYC Power Specialist will estimate your power needs, identify potential problem areas
and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
The Company info with regard to 100%DOD >2000Times 24 Volt 24V 50Ah Li Lipo LiFePO4 Lithium ion Battery Pack for Electric Boat etc
JYC With a one of the largest battery manufacturing centers in China, finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of batteries.
JYC is a leading manufacturer and exporter of Battery.
Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.
-----------------------------------------------------------------------------------------------------------------------------------------------------
JYC 18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery, Lithium iron Phosphate Battery Production Advantages:
♦ Vertical industry chain brings outstanding cost advantages.
♦ Strict quality control system from raw material to production and finished goods, each process has at least one to inspect.
♦ Advanced Technology in assembling battery packs ensures each pack has precise conformance and a stable performance.
♦ Integrated and serial product to meet different customers' needs.
♦ Market-oriented research and develop ensure the upcoming products meet customer demands.
-----------------------------------------------------------------------------------------------------------------------------------------------------
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
The Technology info with regard to 100%DOD >2000Times 24 Volt 24V 50Ah Li Lipo LiFePO4 Lithium ion Battery Pack for Electric Boat etc
-----------------------------------------------------------------------------------------------------------------------------------------------------
The Factors of Quality Guarantee for 18650 Battery, Lithium Battery, Lipo Battery,
Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
(First-class quality management system, Professional technical form.)
JYC Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. JYC test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
The Applied Scope (Industry Solutions) with regard to 100%DOD >2000Times 24 Volt 24V 50Ah Li Lipo LiFePO4 Lithium ion Battery Pack for Electric Boat etc
-----------------------------------------------------------------------------------------------------------------------------------------------------
JYC has the proven solution. JYC already provides security and stable
to millions of users as a global.
> Wind-Solar Energy Storage system > Solar street lights > Off-grid energy storage
> Household energy storage > Telecom backup system > Mobile base stations
> Emergency backup energy sources > Uninterruptible power system > Grid load shifters
> Electric Golf Car > Electric vehicles > Electric motorcycles
> Electric forklifts > Electric boats, etc
The Packaging with regard to 100%DOD >2000Times 24 Volt 24V 50Ah Li Lipo LiFePO4 Lithium ion Battery Pack for Electric Boat etc
The Instruction / Note with regard to 100%DOD >2000Times 24 Volt 24V 50Ah Li Lipo LiFePO4 Lithium ion Battery Pack for Electric Boat etc
|
Battery Operation Instructions: |
|
1. Charge:Connecting the battery pack to the charge controller, connect the charger to recharge. |
|
2. Discharge:Connecting the battery pack to the load, connect the load to discharge. |
|
3. When you combine the battery with series or parallels, if there are oxidation layer on the surface, you Should brush surface to the metal glow with thin steel brush to lower the connective resistance to the minimal resistance. |
|
4. When combining with many batteries, if the voltage between the two electrodes is over 36V, the safe Voltage for human beings, to guarantee the safety, you should not touch the two electrodes with your body. |
|
Notes: |
|
1. If shelve a long time suggested that the battery voltage 39.0V-40.0V, need for regular recharging (even if not use), must charge and discharge for three months one time; |
|
2. Do not expose the battery to extreme heat or flame. |
|
3. Do not short circuit, over-charge or over-discharge the battery pack; |
|
4. Do not disassemble or modify the battery pack. |
|
5. Do not handle or store with metallic like necklaces, coins or hairpins, etc. |
|
6. Do not reverse the polarity of the battery pack for any reason. |
|
7. Do not immerse the battery pack in water or sea water, or get it wet. |
|
8. Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller. |
