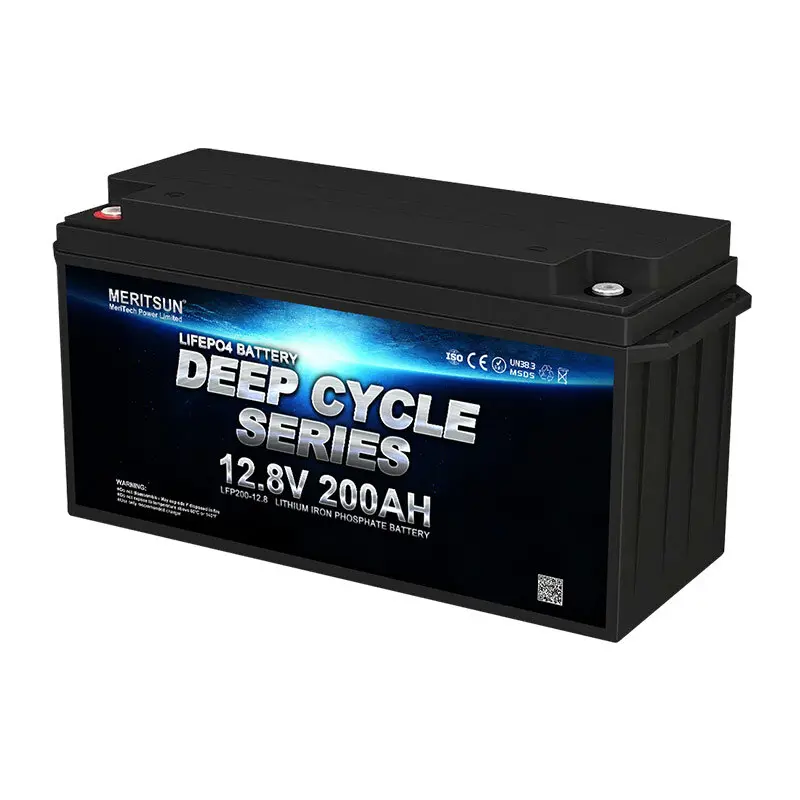

10 Years Warranty Lifepo4 Battery Lithium 12v 200ah Lithium ion Battery
10 Years Warranty Lifepo4 Battery Lithium 12v 200ah Lithium ion Battery
The battery performance can be customized, the following data for reference:
Electrical Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤40mΩ | |
Cycle Life | ≥4000 cycles | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 150A | |
Max. Charge Current | 150A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 150A |
Max. Pulse Current | 350A(<10s) | |
Discharge Cut-off Voltage | 10.5V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP56 | |
Mechanical | Cell & Method | 26650 4S58P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 485*175*240mm / Customized | |
Weight (lbs./kg.) | 25.0kg (55.12 lbs) | |
Terminal | T11 | |
Protocol (optional) | / | |
SOC (optional) | / |
| For more information, Please contact us now |
| You will get the best design solution for FREE !!! |
| ( Just click here , or click on the customer service on the right side) |
.
The Company info with regard to 10 Years Warranty Lifepo4 Battery Lithium 12v 200ah Lithium ion Battery
JYC With a one of the largest battery manufacturing centers in China, finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of batteries.
JYC is a leading manufacturer and exporter of Battery.
Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.
-----------------------------------------------------------------------------------------------------------------------------------------------------
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
