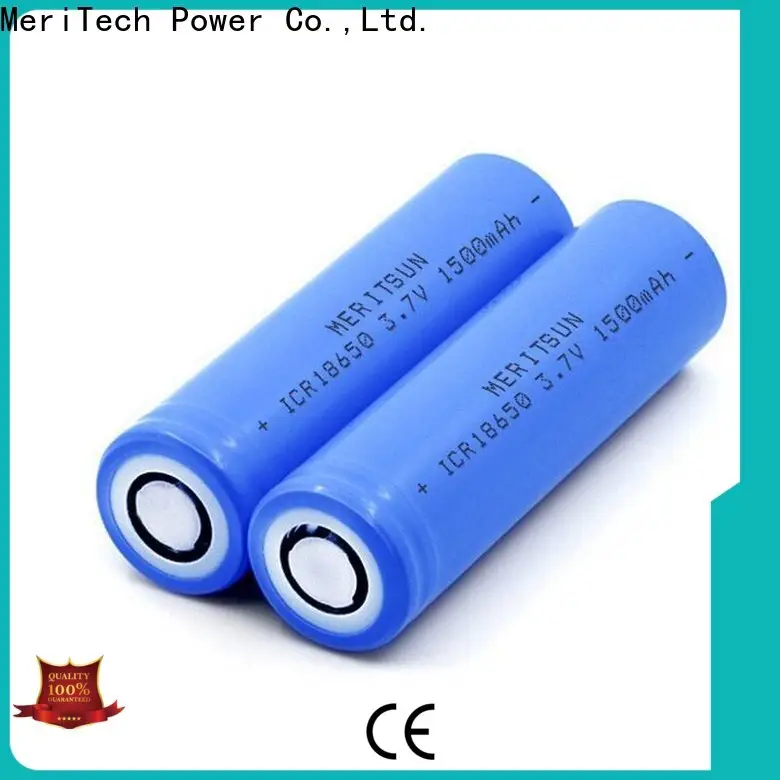

MERITSUN top small lithium ion battery manufacturer for telecom
Model:
ICR18650 3.7V 1500mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. The choice of materials for small lithium ion battery is as simple as possible. The product comes with OEM and ODM availability
2. MERITSUN has the most advanced machine to test the quality of small lithium ion battery before its loading. Before shipment, the product will undergo 45 kinds of detailed tests
3. The product has a sealing property. It has the ability to withstand the leak of oil, gas, and other substances which will cause corrosion. The charge rate of the product is strong, shortening the charge time efficiently
4. The product features dimensional accuracy. It is finely processed by advanced CNC cutting and drilling machines which features highly precise. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
5. The product is efficient. It wastes significantly less power in the charge/discharge process. It can be also cycled deeper. The product is characterized by thermal performance
Company Features
1. MeriTech Power Co.,Ltd. has gained world-wide reputation for its top quality small lithium ion battery . MeriTech Power Co.,Ltd. owns professional machines and experiences in this field.
2. MERITSUN is a professional company with the most experienced technical staff.
3. We have our own designers to develop new 18650 high drain battery . In order to promote our better cooperation, MeriTech Power Co.,Ltd. is willing to do more things for our customers. Get an offer!
1. The choice of materials for small lithium ion battery is as simple as possible. The product comes with OEM and ODM availability
2. MERITSUN has the most advanced machine to test the quality of small lithium ion battery before its loading. Before shipment, the product will undergo 45 kinds of detailed tests
3. The product has a sealing property. It has the ability to withstand the leak of oil, gas, and other substances which will cause corrosion. The charge rate of the product is strong, shortening the charge time efficiently
4. The product features dimensional accuracy. It is finely processed by advanced CNC cutting and drilling machines which features highly precise. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
5. The product is efficient. It wastes significantly less power in the charge/discharge process. It can be also cycled deeper. The product is characterized by thermal performance
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 5.55Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 1500mA | |
| 11 | Standard discharge current | 300mA | |
| 12 | Max Discharge current | 10~25C | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 47±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. has gained world-wide reputation for its top quality small lithium ion battery . MeriTech Power Co.,Ltd. owns professional machines and experiences in this field.
2. MERITSUN is a professional company with the most experienced technical staff.
3. We have our own designers to develop new 18650 high drain battery . In order to promote our better cooperation, MeriTech Power Co.,Ltd. is willing to do more things for our customers. Get an offer!
